    Motherboard Factory direct game desktop X79 lga 2011 ddr3 dual channel motherboard computer

    Ask Lasest Price
    Model Number : X79-S290-V2.84
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

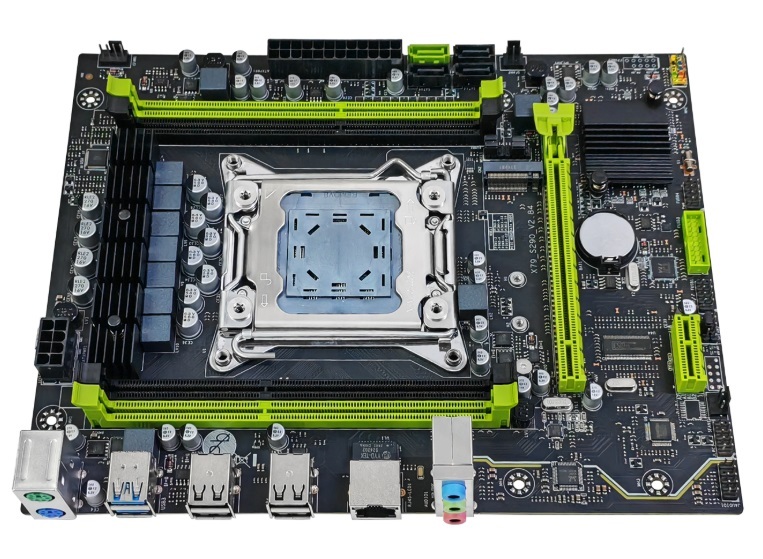

    Motherboard Factory direct game desktop X79 lga 2011 ddr3 dual channel motherboard computer

    Motherboard Factory direct game desktop X79 lga 2011 ddr3 dual channel motherboard computer


    l Support Intel Xeon E5 LGA2011-0 processor.

    l Supports four channels of DDR3 memory, and supports a maximum capacity of 128GB.

    l Supports 1 x M.2 slots.

    l Supports 3x SATA 2.0 and 1x SATA 3.0 sockets.

    l The rear IO provides 4xusb2.0 and 2xusb3.0 interfaces.

    l Built-in pins can expand 4 x USB2.0 and 2 x USB3.0 interfaces.

    l Support 5.1 channel ALC897 chip

    l Support 1 x PS2 keyboard and mouse

    l Support 1 x Gigabit network card, PXE and network wake-up function.

    l Support 1 x PCIE X16 slot, 1 x PCIE X1 slot.

    l Support 24PIN+8PIN ATX power input.


    Motherboard chip

    X79_S290_V2.84

    CPU

    Intel Xeon E5 LGA2011-0 Pin Processor

    memory

    4*DDR3 DIMM, 1066/1333/1600/1866MHZ, with a maximum capacity of 128GB(32GB*4).

    Cunzhu

    1*M.2 slot (PCIE M.2 /SATA M.2 jumper switch); 3*SATA 2.0, 1x SATA 3.0 interface

    Network card chip

    RTL8111H gigabit network card chip

    PS/2

    1*PS2 mouse and keyboard interface

    audio frequency

    1*Line out,1*MIC In,1*Line in 1*F_Audio built-in pin

    Audio chip

    Realtek ALC897 HD Audio Chip

    Usb interface

    IO interface: 4 x USB2.0, 2 x USB3.0

    Built-in pins: 4*USB2.0 (two sets of USB pins can be extended by four USB2.0) and 2 * USB3.0 (one set of USB pins can be extended by two USB 3.0).

    PCIE

    1*PCIE X16 slot; 1*PCIE X1 slot

    Functional pin

    1*FPANEL panel pin; 1*4Pin CPU fan, 2*3Pin SYS fan; 1*4Pin buzzer pin

    Power input

    24Pin+8Pin ATX power socket

    product size

    186.82 mm x 237.13 mm 6 floors







    Quality Motherboard Factory direct game desktop X79 lga 2011 ddr3 dual channel motherboard computer for sale
