Motherboard Intel Core 12/13/14th I9/i7/i5/i3/Pentium LGA1700 H610-D4-V1.1 for desktop office use

    Buy cheap Motherboard Intel Core 12/13/14th I9/i7/i5/i3/Pentium LGA1700 H610-D4-V1.1 for desktop office use from wholesalers

    Buy cheap Motherboard Intel Core 12/13/14th I9/i7/i5/i3/Pentium LGA1700 H610-D4-V1.1 for desktop office use from wholesalers
    • Buy cheap Motherboard Intel Core 12/13/14th I9/i7/i5/i3/Pentium LGA1700 H610-D4-V1.1 for desktop office use from wholesalers
    • Buy cheap Motherboard Intel Core 12/13/14th I9/i7/i5/i3/Pentium LGA1700 H610-D4-V1.1 for desktop office use from wholesalers
    • Buy cheap Motherboard Intel Core 12/13/14th I9/i7/i5/i3/Pentium LGA1700 H610-D4-V1.1 for desktop office use from wholesalers

    Motherboard Intel Core 12/13/14th I9/i7/i5/i3/Pentium LGA1700 H610-D4-V1.1 for desktop office use

    Ask Lasest Price
    Model Number : H610-D4-V1.1
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

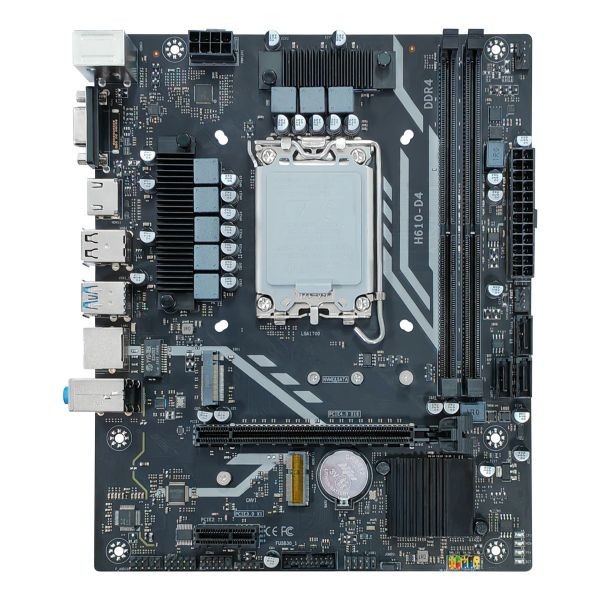

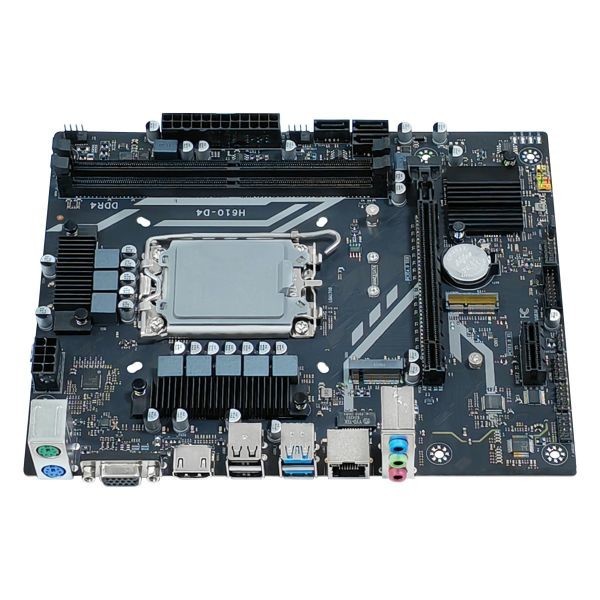

    Motherboard Intel Core 12/13/14th I9/i7/i5/i3/Pentium LGA1700 H610-D4-V1.1 for desktop office use


    ▲ Support LGA1700 Intel Core I9/i7/i5/i3/Pentium series processors.

    ▲ Support VGAHDMI synchronous dual display.

    ▲ Support one M.2(NVME/SATA protocol)

    ▲ Support for 3 SATA interfaces

    ▲ Support high-speed DDR4 dual-channel memory slot: support 2133/2400/2666/3000.

    /3200MHz with a maximum capacity of 64G.

    ▲ Support 4 USB3.0; 4 USB2.0

    ▲ Support 1 serial port

    ▲RJ45 Gigabit NIC interface

    ▲ Support 6+1+1 phase CPU power supply, 6-layer PCB.




    Model Name

    H610-D4-V1.1

    processor

    Intel Core 12/13/14th I9/i7/i5/i3/Pentium LGA1700 Pin Series Processors

    Southbridge

    H610 Chipset

    memory

    technology

    Dual channel DDR4; Support 2133/2400/2666/3000/3200mhz (Max), support XMP.

    maximum capacity

    64GB (32G*2)

    Memory slot

    2 * 288 PIN DDR4

    Post I/O

    PS/2

    1 KB interface +1 MS interface

    Display interface

    1 HDMI2.0+1 VGA

    USB port

    2 USB 2.0; 2 USB3.2 GEN2(10Gbps)

    Ethernet

    1 Realtek Gigabit NIC

    AUDIO

    1 (Mic-in, Line-out, Line-in)

    Internal connector

    CFAN

    1 4PIN pin

    SFAN

    1 4PIN pin

    ATXPWR interface

    1 standard 8PIN power socket; 1 standard 24PIN power socket

    USB2.0

    2 (1 FUSB can be transferred out of 2 USB)

    USB3.0

    2 (1 FUSB can be transferred out of 2 USB); 5Gbps

    cluster communication port

    1 x 2x5Pin pin

    WIFI

    1, supporting CNVIPCIe protocol.

    JSEPI

    1 x 2x5Pin pin

    serial ata

    3 (SATA3.0)

    M.2

    1 (PCIe GEN3 X4/SATA3.0 protocol)

    F_AUDIO

    1 x 2x5Pin pin

    PCIe

    1 PCIe X16 4.0, 1 PCIe X1 3.0

    F_PANEL

    1 x 2x5Pin pin

    environment

    temperature range

    working environment

    Storage environment

    Temperature: 0 ~ 50 C Humidity: 5%~95%

    Temperature:-20 ~ 70 C Humidity: 5%~95%

    Physical size

    measure

    218mm * 180mm







    Quality Motherboard Intel Core 12/13/14th I9/i7/i5/i3/Pentium LGA1700 H610-D4-V1.1 for desktop office use for sale
