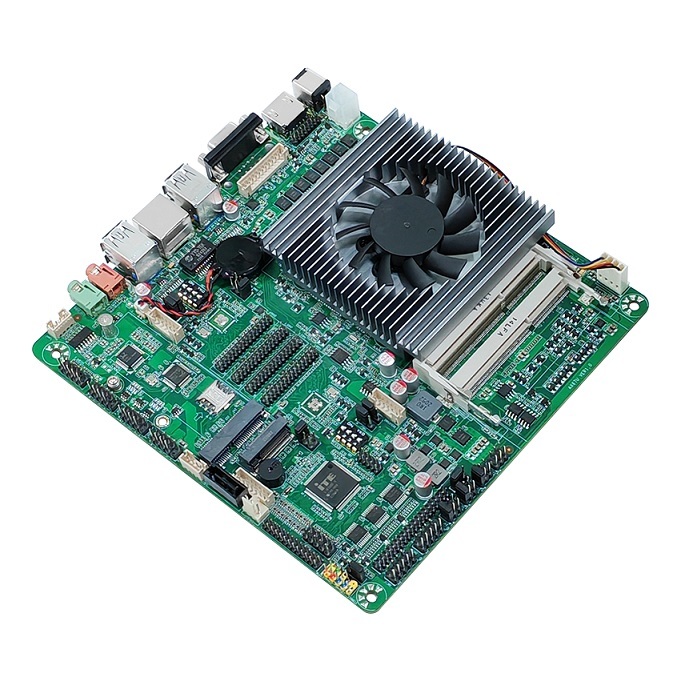

    AX67U V1.1 Intel 6th U Mobile Platform Industrial IPC Motherboard

    AX67U is an industrial computer motherboard based on Intel 6th generation Sky Lake. The motherboard supports dual-channel memory, M.2(NGFF/NVME), SATA mode SSD, different network access modes of RJ45/Mini PCIE WIFI/4G module, and also supports rich peripheral interfaces, which is suitable for many different types of industrial computers in the industry.


    l Design of Skylake Platform Based on Intel

    l Support for 6th Generation -U Intel processors

    l Support dual-channel SO-DIMM DDR3 memory

    l 1× Mini PCIE slot (supporting WIFI/4G)

    l 1 M.2 2280 slot (supporting NGFF/NVME mode)

    l The rear IO provides 4xUSB3.0.

    l Built-in pin can expand 6 USB2.0 interfaces.

    l 1 x HDMI,1 x VGA,2 x LVDS,2 x EDP

    l 6 x COM, 1 x LPT, 1 x PS2 keyboard and mouse

    l 1 x Gigabit network card, supporting PXE and network wake-up function.

    l Support one-button clearing CMOS button function.

    l Support DC12V power input


    Model Name

    AX67U V1.1 Intel 6th-U Mobile platform IPC motherboard

    Motherboard chip

    Intel Sky Lake

    CPU

    Intel 6th Generation -U CPU, TDP:15W

    Optional: I3-6100U, I5-6300U, I5-6360U, I7-7200U, etc.

    memory

    2*DDR3 SO-DIMM, 1600MHz/32G, single slot supports up to 16G.

    Cunzhu

    1*M.2 slot (NGFF/NVME automatic switching); 1*SATA 3.0 interface+1*SATA power interface

    Display interface

    1*HDMI interface, 1*VGA interface (optional with DB9), 2*LVDS interface, 2*EDP interface.

    network

    1*RJ45 interface

    Network card chip

    Realtek RTL8111H Gigabit NIC Chip

    WIFI/4G

    1*Mini PCIE slot (WIFI/4G)

    audio frequency

    1*Line out 1*MIC In 1*F_Audio built-in pin; 1*JAMP built-in power amplifier pin

    Audio chip

    Realtek ALC897 HD Audio Chip

    serial port

    6 serial ports: 2*9Pin serial port pin, 1*40Pin serial port pin, 2*3Pin serial port voltage pin, 2*3Pin serial port communication pin.

    6 serial ports all support RS232 mode, of which COM2 supports RS485 and RS422 mode, and COM3 supports RS485 mode.

    Usb interface

    IO interface: 4 * USB 3.0; Built-in pins: 3 sets of USB2.0 pins (6 USB2.0 ports can be expanded)

    LVDS function

    2*LVDS 30Pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V), 1*3Pin backlight positive and negative jump cap.

    Support copy/extended display

    LVDS backlight function

    1*6Pin INVERTER interface, 1*3Pin screen backlight voltage jump cap (5V/12V).

    EDP function

    2*EDP 30Pin pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V)1*3Pin backlight positive and negative jump cap.

    Support copy/extended display

    EDP backlight function

    1*3Pin screen backlight voltage jump cap (5V/12V)

    Functional pin

    1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan

    Power input

    1*DC socket; 2*2Pin ATX power socket (DC12V power input)

    product size

    Thin Mini-ITX motherboard specification, 170 x 170 mm x 6L

    Working temperature

    -10~60

    Working humidity requirements

    10%~90% without condensation

    Storage temperature

    -25~70

    power consumption

    Standby power consumption: 11W Full load power consumption: 60W

    other

    1 JCMOS button; 1*3Pin JAT jump cap; 2*5Pin diagnostic card interface
