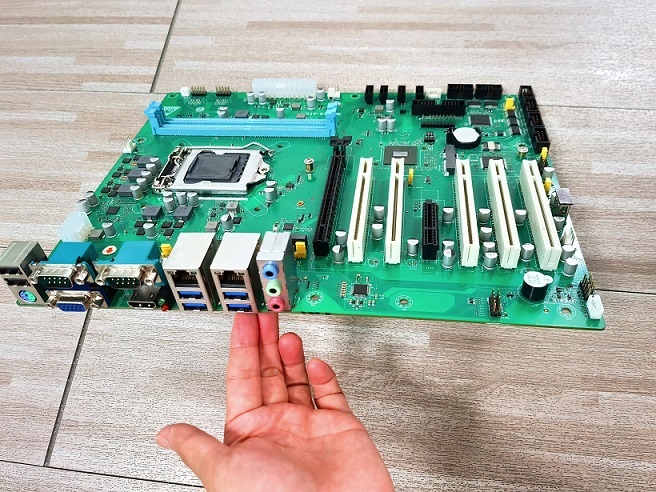

    Intel H110 Chip Industrial ATX Motherboard lga1151 6th/7th/8th/9th GEN CPU 2LAN 6COM RS232

    Ask Lasest Price
    Brand Name : OEM
    Model Number : GW-H110-ATX V1.1 motherboard
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    Intel H110 Chip Industrial ATX Motherboard lga1151 6th/7th/8th/9th GEN CPU 2LAN 6COM RS232

    Industrial ATX Motherboard Intel H110 Chip lga1151 6th/7th/8th/9th GEN CPU 2LAN 6COM RS232 ATX Industrial motherboard Support RAID


    Features (product features)

    ▲ Support Intel desktop 6th, 7th, 8th and 9th generation processors.

    ▲ Support dual-channel DDR4 desktop memory, and support 64GB 2666MHz DIMM at most.

    ▲ Support 1 front and 1 rear audio interface.

    ▲ Support 8 serial ports, 1 parallel port and 1 PS/2 KB&MS interface.

    ▲ Support 4 USB3.0 interfaces and 5 USB2.0 interfaces.

    ▲ Support 4 SATA interfaces and 1 M.2 interface.

    ▲ Support 2 PCIE interfaces, 5 PCI interfaces and 1 MINIPCIE interface.

    ▲ Support two RJ45 Gigabit network card interfaces.

    ▲ Support VGA/HDMI display interface, and support synchronous dual display.

    ▲ Support 1 TPM 2.0

    processor

    Intel Desktop 6th, 7th, 8th and 9th Generation Processors

    CPU

    Support Celeron, Pentium, I3, I5, I7 series CPU, below 65W.

    memory

    technology

    Dual channel DDR4 2666MHz

    maximum capacity

    The maximum capacity is 64GB, and the maximum support for a single slot is 32GB.

    Memory slot

    2 288Pin DDR4 DIMM(Non-ECC) slots

    Post I/O

    HDMI

    Standard D socket, supporting HDMI1.4, maximum resolution: 4096x2304@24Hz.

    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

    serial port

    Two standard DB9 serial ports, supporting RS232/RS422/RS485 mode (6 strings /8 strings are optional).

    PS/2 interface

    1 PS/2-to-2 KB&MS interface

    Ethernet

    1 IntelI211 Gigabit NIC and 1 I219V Gigabit NIC.

    Audio

    1 rear audio interface (Line-out, Mic-in, Line_in)

    USB port

    4 USB 3.0 interfaces and 2 USB 2.0 interfaces.

    Internal connector

    USB port

    3 USB2.0 interfaces (one pin FUSB can switch out 2 USB2.0 interfaces)

    serial port

    6 COM ports, supporting RS232 mode.

    Audio

    1 front main audio interface and 1 SPDIF interface

    PCIE interface

    1 16X slot and 1 4X slot (MINIPCIE interface is available when 4X slot uses 2X signal).

    PCI interface

    5 PCI slots

    MINIPCIE

    1 MINIPCIE interface, supporting WIFI and 4G module communication (this interface is available when 4X slot uses 2X signal).

    serial ata

    4 7Pin SATA interfaces, supporting SATA 3.0 speed. (SATA1 and M.2 interfaces can only be selected)

    M.2 interface

    1 M.2 interface, supporting SATA protocol. (SATA1 and M.2 interfaces can only be selected)

    TPM interface

    1 2*10Pin TPM interface, supporting extended TPM module.

    FP1 interface

    1 switch control panel

    LPT interface

    1 2*13Pin parallel port

    GPIO interface

    16 channels (2 groups of 8 channels) bidirectional 3.3V

    RECOVERY

    1 system with one-button reset pin
