    Industrial Mini PC Motherboard I5 6200U/6300U ITX 6th Generation DDR3 EDP VGA LVDS M .2 M Key SSD

    Ask Lasest Price
    Model Number : GW7-T67D3-V1.2
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

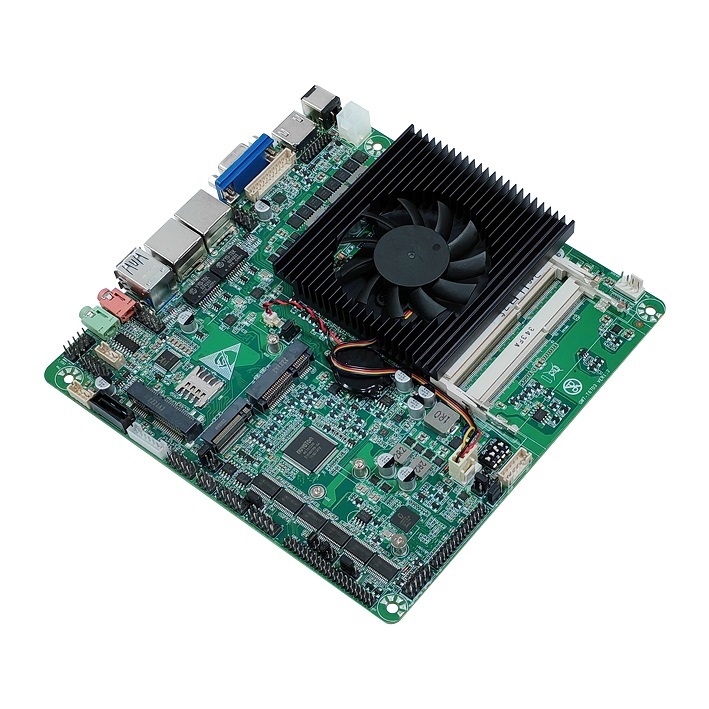

    Industrial Mini PC Motherboard I5 6200U/6300U ITX 6th Generation DDR3 EDP VGA LVDS M .2 M Key SSD

    Mini Pc Motherboard I5 6200U/6300U Mini ITX 17*17cm 6th Generation Industrial Mainboard Ddr3 EDP VGA LVDS M .2 M Key SSD GW7-T67D3-V1.2

    Features (product features)

    Support Intel Skylake/Kabylake-U series processors.

    Support dual-channel DDR3L memory, and support 32GB 1600MHz SDRAM at most.

    Support 5.1-channel ALC887 chip with onboard power amplifier.

    Support one 7Pin SATA interface.

    Support 6 serial ports and 1 PS2 interface.

    Support 2 USB3.0 and 6 USB2.0.

    Support Mini PCIE expansion slot (including 8pin SIM card slot)

    Support M.2 KEYE

    Support two RJ45 Gigabit network card interfaces.

    Support VGA/HDMI/LVDS(EDP) display interface, and support synchronous three displays.

    Support single power supply 12V DC input.

    Support Windows7 and Windows10 32/64 bit operating systems.


    Specifications (specifications)

    Model Name

    GW7-T67D3 VER:1.2

    processor

    Intel Skylake-U and Kabylake-U i7/i5/i3 series processors.

    CPU

    Such as I3-6100U, I5-6300U, I5-6360U, I5-7200U, I7-6500U.

    memory

    technology

    Dual-channel DDR3L 1600MHz

    maximum capacity

    The maximum capacity supports 32GB, and a single slot supports up to 16GB of memory.

    Memory slot

    2*204Pin DDR3L SO-DIMM(Non-ECC)

    Post I/O

    DC interface

    1 standard 2.5mm DC power socket

    HDMI

    Standard D socket, supporting HDMI1.2(HDMI and JHDMI can only be selected)

    VGA

    Standard DB15 socket (VGA interface and JVGA interface can only be selected)

    Ethernet

    1 or 2 Realtek Gigabit NICs (LAN1 and USB2.0 are shared)

    Audio

    1 (Line-out, Mic-in)

    USB port

    2 USB 3.0

    Internal connector

    USB port

    6 (one FUSB can switch out two USB2.0 interfaces);

    serial port

    6 (all serial ports support RS232 mode, COM2 supports RS232/485/422 mode and COM3 supports RS232/485 mode).

    PS2 interface

    1*7Pin 2.0mm white socket, which can connect PS2 keyboard and PS2 mouse.

    Audio

    1 2*5Pin pin (Mic-in, Line-out)

    power amplifier

    1*4Pin 2.0mm white socket, which can support up to two 5W2 speakers.

    JHDMI interface

    Supports 2*8Pin pins (HDMI and JHDMI can only be selected).

    JVGA

    Supports 1*12Pin pins (VGA and JVGA can only be selected)

    LVDS/EDP

    Support single (dual) channel 18(24) bits, (LVDS and EDP can only be selected)

    Mini-PCIe

    1 full-length card Mini PCIe slot, supporting WIFI, 4G

    M.2

    1 full-length M.2 KEY M slot, supporting M.2 hard disk.

    MSATA

    1 Mini PCIe slot for full-length card, supporting SSD hard disk.

    serial ata

    1 7PIN SATA interface, supporting SATA 3.0

    GPIO

    Support 8-way bidirectional 5V

    PWR interface

    1 standard 2x2Pin power socket, also can support 2Pin Phoenix terminal.

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 12W Full load power consumption: 46.8W

    environment

    temperature range

    working environment

    Storage environment

    Temperature: 10 ~ 60 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    DC power supply

    adapter

    DC 12V power input

    Physical size

    measure

    170 mm x 170 mm
