    Industrial 12*12cm Skylake Kaby Lake Mini Itx Motherboard GW2-N67D-V2.1

    Ask Lasest Price
    Model Number : GW2-N67D-V2.1
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

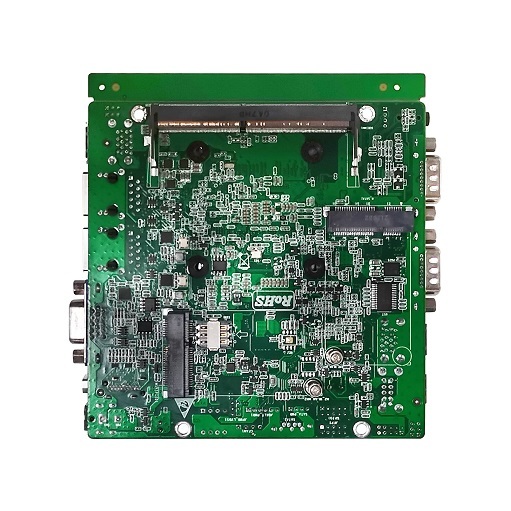

    Industrial 12*12cm Skylake Kaby Lake Mini Itx Motherboard GW2-N67D-V2.1

    Industrial Motherboard for IoT mini Itx motherboard 12*12 cm Skylake-U/Kabylake Motherboard for Box Pc for Industrial Computer GW2-N67D-V2.1

    Features

    Support Intel Skylake-U/Kabylake series processors.

    Support DDR4 memory, up to 16GB 2400MHz SDRAM.

    Support stereo dual-channel ALC887 chip with onboard power amplifier.

    Support 2 serial ports

    Support 4 USB3.0 and 4 USB2.0.

    Support Mini PCIE expansion slot (including 6pin SIM card slot)

    Support 1 7Pin SATA interface and 1 MSATA interface.

    Support two RJ45 Gigabit network card interfaces.

    Support VGA/HDMI/LVDS display interface, and support synchronous three displays.

    Support one-click backup and restore function.

    Support single-supply DC12V input

    Support Windows7 and Windows10 32/64 bit operating systems.


    Specifications

    Model Name

    GW2-N67D VER:1.1

    processor

    Intel Skylake-U/Kabylake series processors

    CPU

    For example: I5-6200U, I5-7200U, i3-8130U, etc.

    memory

    technology

    Single channel DDR4 2400MHz (6,7 generation CPU supports 2133MHZ at most, and 8 generation CPU supports 2400MHz at most).

    maximum capacity

    16GB

    Memory slot

    1 x 260Pin DDR4 SO-DIMM(Non-ECC)

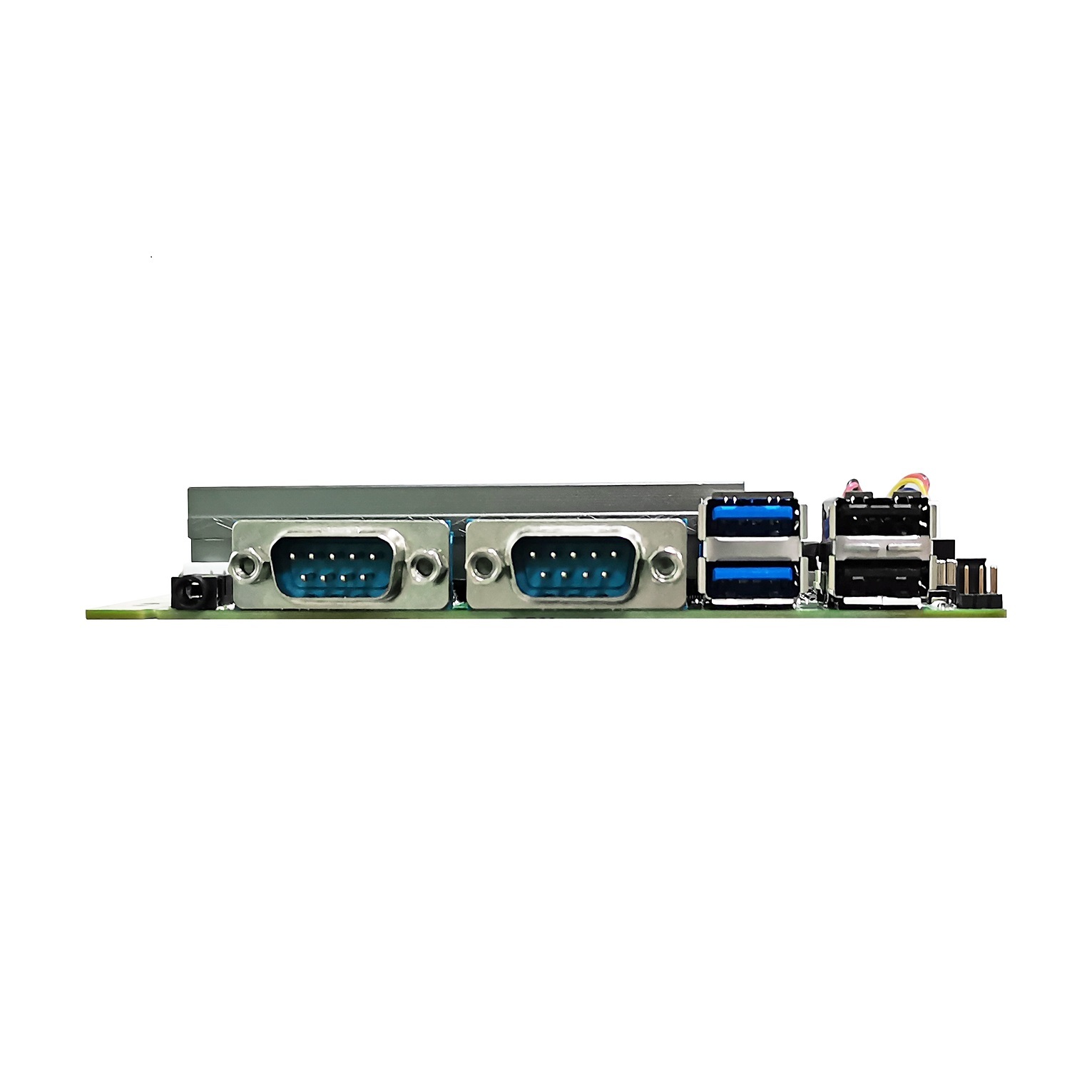

    Post I/O

    power source

    1 standard 2.5mm DC12V power socket

    HDMI

    Standard D socket, supports HDMI1.4, and the maximum resolution is 4096x2304@24Hz.

    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

    Ethernet

    Two gigabit network cards, RTL8111H network card chip.

    USB port

    4 USB3.0 interfaces and 2 USB2.0 interfaces.

    serial port

    2 (both serial ports support RS232 mode)

    Audio

    1 line-out (MIC)

    Internal connector

    USB port

    2 USB2.0 interfaces

    LVDS interface

    Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.

    power amplifier

    1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2.

    Mini-PCIe

    1 Mini PCIe slot of full-length card (supporting WIFI and 4G)

    MSATA

    1 MSATA, supporting SATA 3.0.

    serial ata

    1 7Pin SATA interface, supporting SATA 3.0

    onekey recovery

    Support one-click backup and restore function

    GPIO

    8-way bidirectional 5V

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 6.0W Full load power consumption: 60.0w.

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-40 ~ 70 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    Physical size

    measure

    120 mm x 120 mm
