    DDR3 Intel Broadwell Haswell Mini Itx Motherboard 4th 5th GEN Core I5 4300U

    Ask Lasest Price
    Model Number : GW7-T45D-V1.1
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    DDR3 Intel Broadwell Haswell Mini Itx Motherboard 4th 5th GEN Core I5 4300U

    OEM ODM Mini Itx Motherboard 4th 5th GEN Core I5 4300U DDR3 2.5" SATA M.2


    Features (product features)

    Support Intel Haswell-U series processors.

    Support 2 SATA interfaces, 2 USB3.0 and 6 USB2.0.

    Support a single 204 pin SO-DIMM to 8GB DDR3L/1600MHz.

    Supports 5.1-channel ALC887 chip.

    Support 6 serial ports, 1 parallel port, 1 PS/2 interface and 1 GPIO interface.

    High-speed USB3.0 interface transmission speed

    Mini PCIE expansion slot *2

    RJ45 Gigabit NIC interface *2

    Support VGA/HDMI/LVDS display interface, and support synchronous three displays.

    Support Windows7 and Windows10 32/64 bit operating systems.

    Support single power supply 1


    Model Name

    GW7-T45D VER:1.1

    processor

    Intel Haswell-U series processors.

    CPU

    I5-4300U

    memory

    technology

    Single channel DDR3L 1600MHz

    maximum capacity

    8GB

    Memory slot

    1*204Pin DDR3 SO-DIMM(Non-ECC)

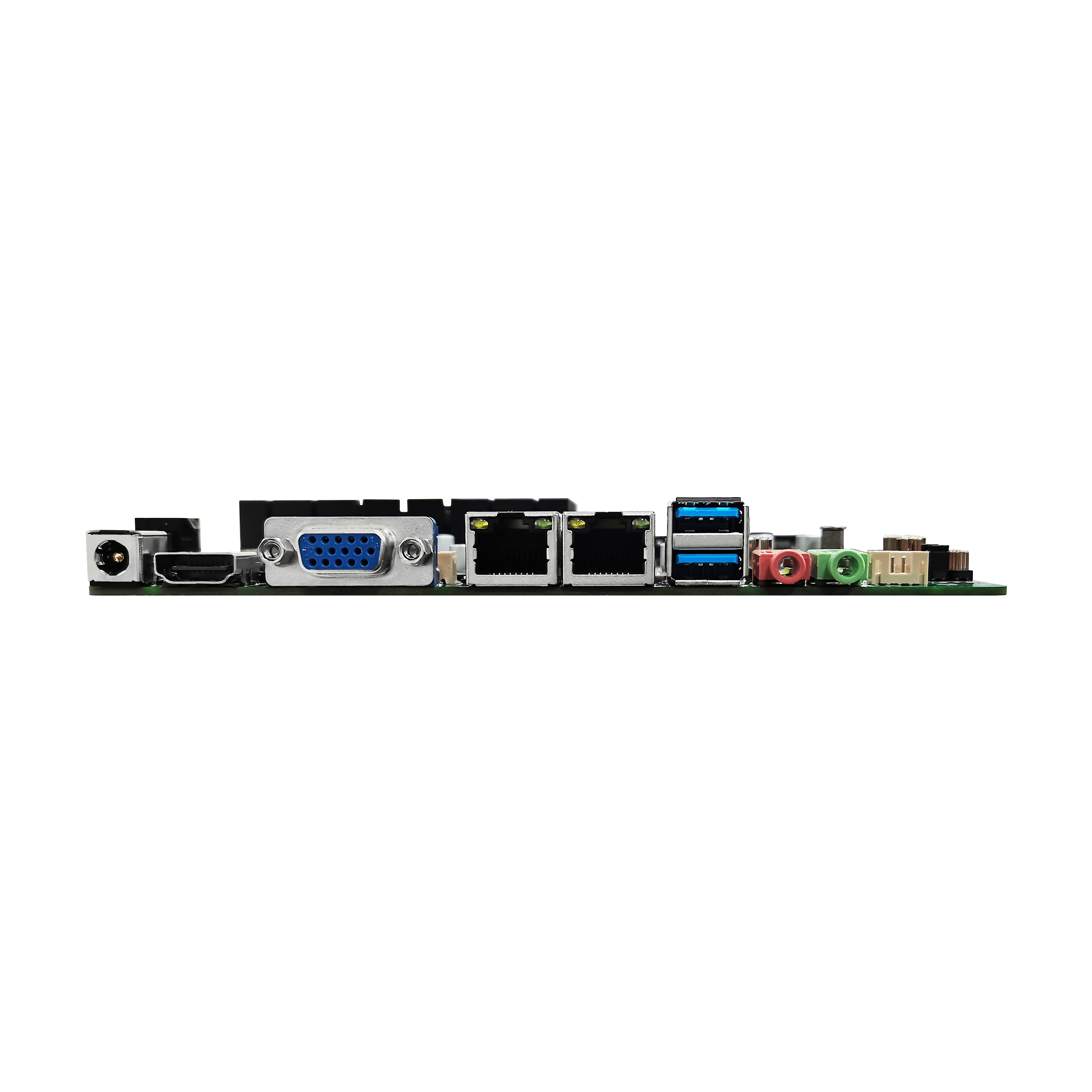

    Post I/O

    DC interface

    1 standard 2.5mm DC power socket

    HDMI

    Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60Hz.

    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

    Ethernet

    1 or 2 gigabit network cards (LAN1 and USB2.0 are laid together), RTL8111H network card chip.

    Audio

    1 (Line-out, Mic-in)

    USB port

    2 USB 3.0

    Internal connector

    USB port

    6 (one FUSB can transfer out two USB2.0 interfaces);

    serial port

    6 (serial ports all support RS232 mode, among which COM2 and COM3 support RS422 and RS485 mode)

    parallel port

    1 2*13Pin pin

    PS/2 interface

    1 (PS/2 mouse, PS/2 keyboard)

    Audio

    1 2*5Pin pin (Mic-in, Line-out)

    power amplifier

    1*4Pin 2.0mm white socket, which can support up to two 5W2 speakers.

    JHDMI interface

    2*8Pin pin, supporting the maximum resolution of 2560*1600@60HZ(HDMI and JHDMI can only be selected).

    JVGA

    1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

    LVDS interface

    Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz(LVDS and EDP can only be selected).

    Mini-PCIe

    1 full-length card Mini PCIe slot, supporting WIFI, 4G module.

    MSATA

    1 Mini PCIe slot for full-length card, supporting SSD hard disk.

    serial ata

    Two 7PIN SATA interfaces and 2.5-inch hard disk interfaces, supporting SATA 3.0.

    GPIO

    8-way bidirectional 5V

    PWR interface

    1 standard 2x2PIN power socket

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 9.6W Full load power consumption: 44.4W

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-10 ~ 60 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    Physical size

    measure

    170 mm x 170 mm
