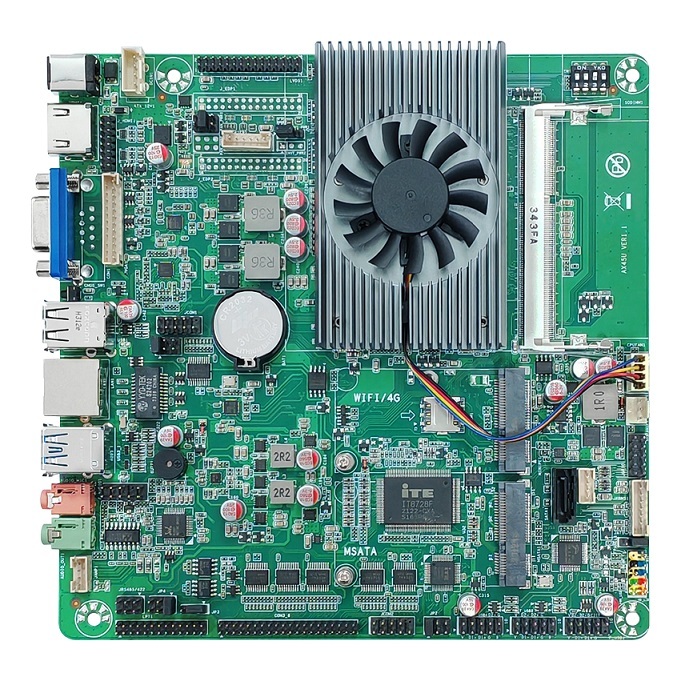

    Industrial Intel 4th / 5th GEN Mainboard Mini Itx RS 232 485 COM LVDS EDP

    4th/5th GEN Mainboard Intel processors mini itx RS 232 485 COM LVDS EDP all supported motherboard


    AX-45U is an industrial computer motherboard, which is based on Intel 4/5 Haswell. The motherboard supports single channel memory, MSATA mode SSD, RJ45/Mini PCIE WIFI different network access modes, and also su

    l Design of haswell platform based on Intel

    l Support 4th/5th generation Intel processors

    l Support single-channel SO-DIMM DDR3 memory

    l 1× Mini PCIE slot (supporting WIFI or 4G module)

    l 1× MSATA slot

    l The rear IO provides 2xUSB3.0 and 2xUSB2.0.

    l Built-in pin can expand 6 USB2.0 interfaces.

    l 1 x HDMI,1 x VGA ,1 x LVDS,2 x EDP

    l 6 x COM,1 x LPT

    l 1 x Gigabit network card, supporting PXE and network wake-up function.

    l Support DC12V power input


    Model Name

    AX-45U industrial motherboard

    Motherboard chip

    Intel Haswell

    CPU

    Intel 4th/5th Generation -U CPU, TDP:15W

    Optional: I5-4300U, I5-5200U, I5-5300U, I5-5287U.

    memory

    1*DDR3 SO-DIMM, 1600MHz/8G, single slot supports up to 8G.

    Cunzhu

    1*MSATA slot; 1*SATA 3.0 interface+1*SATA power interface

    Display interface

    1*HDMI interface, 1*VGA interface (optional with DB9 serial port), 1*LVDS interface, 2*EDP.

    network

    1*RJ45 interface

    Network card chip

    Realtek RTL8111H Gigabit NIC Chip

    WIFI

    1*Mini PCIE slot (WIFI or 4G module)

    audio frequency

    1*Line out 1*MIC In 1*F_Audio built-in pin; 1*JAMP built-in power amplifier pin

    Audio chip

    Realtek ALC897 HD Audio Chip

    serial port

    2*9Pin serial port pin, 1*40Pin serial port pin, 2*6Pin serial port voltage pin and 1*6Pin serial port communication pin.

    Serial ports all support RS232 mode, among which COM2 supports RS485 and RS422 mode, and COM3 supports RS485 mode.

    Usb interface

    IO interface: 2*USB3.0, 2 USB2.0; Built-in pins: 3 sets of USB2.0 pins (6 USB2.0 ports can be expanded)

    LVDS function

    1*LVDS 30Pin pin, 1*6Pin display voltage jump cap (3.3V/5V/12V)

    LVDS and EDP2 support replication/extended display.

    LVDS backlight function

    1*6Pin INVERTER interface, 1*3Pin screen backlight voltage jump cap (5V/12V).

    EDP function

    2*EDP 30Pin pin, 1*6Pin display voltage jump cap (3.3V/5V/12V)

    Two edps support replication/extended display.

    Functional pin

    1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan

    Power input

    1*DC socket; 2*2Pin or 1*4Pin (optional) power socket; (DC12V power input)

    product size

    Thin Mini-ITX motherboard specification, 170 x 170 mm x 6L

    Working temperature

    -10~60

    Working humidity requirements

    10%~90% without condensation

    Storage temperature

    -25~70

    power consumption

    Standby power consumption: 13.3W Full load power consumption: 53.2W w.

    other

    1 JCMOS button; 1*3Pin JAT jump cap
