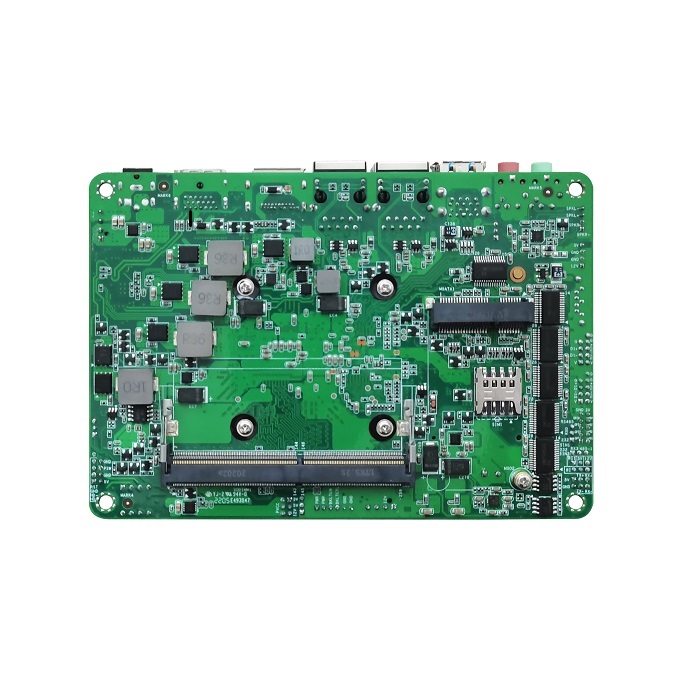

    3.5 Inch Intel Whiskey Lake / Comet Lake U Trail Mini ITX Industrial Motherboard

    Ask Lasest Price
    Model Number : GW3-N10D-V1.0
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    3.5 Inch Intel Whiskey Lake / Comet Lake U Trail Mini ITX Industrial Motherboard


    Support Intel Whiskey Lake/Comet Lake-U series processors.

    Support DDR4 memory, up to 16GB 2666MHz SDRAM.

    Support stereo dual-channel ALC887 chip with onboard power amplifier.

    Support 6 serial ports

    Support 2 USB3.0 and 4 USB2.0.

    Support Mini PCIE expansion slot (including 8pin SIM card slot)

    Support one 7Pin SATA interface.

    Support two RJ45 Gigabit network card interfaces.

    Support HDMI/DP/LVDS display interface, and support synchronous three displays.

    Support single power supply 12V input.

    Support Windows10 32/64 bit operatin


    Specifications

    Model Name

    GW3-N10D VER:1.1


    processor

    Intel Whiskey Lake/Comet Lake-U, i7/i5/i3 series processors.

    memory

    technology

    Single channel DDR4 2666MHz

    maximum capacity

    16GB

    Memory slot

    1*260Pin DDR4 SO-DIMM(Non-ECC)

    Post I/O

    DC interface

    1 standard 2.5mm DC power socket

    HDMI

    Standard D socket, supporting HDMI1.2.

    DP

    Standard socket

    Ethernet

    2 Realtek Gigabit NICs

    Audio

    1 (Line-out, Mic-in)

    USB port

    2 USB 3.0

    Internal connector

    USB port

    4 (one FUSB can transfer 2 USB2.0 interfaces);

    serial port

    6 (serial ports all support RS232 mode, among which COM2 and COM3 support RS485 mode)

    power amplifier

    1*4Pin 2.0mm white socket, which can support up to two 5W2 speakers.

    LVDS

    Support single (dual) channel 18(24) bits

    Mini-PCIe

    1 Mini PCIe slot of full-length card, supporting WIFI and 4G modules.

    1 Mini PCIe slot for full-length card, supporting SSD hard disk.

    serial ata

    1 7PIN SATA interface, supporting SATA 3.0

    GPIO

    8-way bidirectional 5V

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 13.2W Full load power consumption: 62.4W

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-10 ~ 60 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    Physical size

    measure

    145 mm x 102 mm
