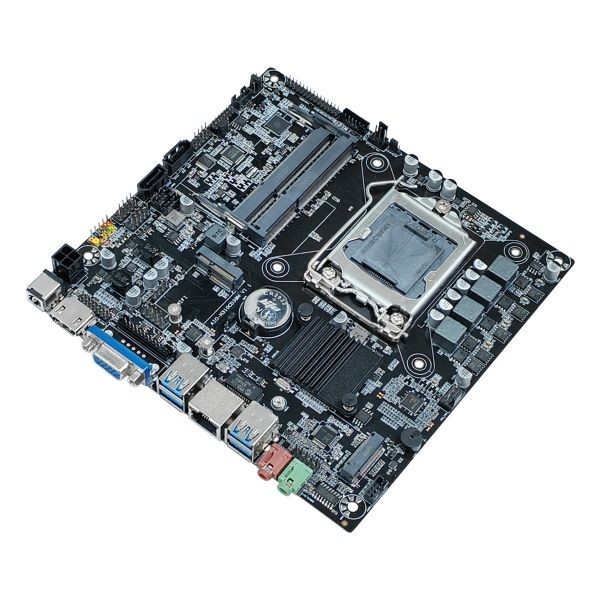

    H310 AIO Mainboard Dual channel DDR3 1600MHz For 6th 7th 8th 9th Generation

    Ask Lasest Price
    Model Number : AIO-H310CD39M-V1.1
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    H310 AIO Mainboard Dual channel DDR3 1600MHz For 6th 7th 8th 9th Generation

    Features (product features)

    ▲ Support the 6th, 7th, 8th and 9th generation Intel desktop processors.

    ▲ Support two 204 Pin SO-DIMMs with 32 GB DDR 3/1600 MHz memory slots.

    ▲ Support 2 SATA interfaces and 1 M.2 hard disk.

    ▲ Support 4 USB3.0 and 5 USB2.0.

    ▲ Support stereo dual-channel audio with onboard power amplifier.

    ▲ Support 1 serial port and RS232 mode.

    ▲ Support one M.2WIFI.

    ▲ Support one RJ45 Gigabit NIC interface.

    ▲ Support VGA/HDMI/LVDS display interface, and support synchronous dual display.

    ▲ Support Win7/Win10 32/64 bit operating system and Linux system.

    ▲ Support DC input of DC12V~19V power supply.


    Model Name

    AIO-H310CD39M Ver:1.0

    processor

    Intel Desktop 6th, 7th, 8th and 9th Generation Processors

    Southbridge

    H310 Chipset

    memory

    technology

    Dual channel DDR3 1600MHz

    maximum capacity

    32GB

    Memory slot

    Two 204 Pin DDR3L SO-DIMM(Non-ECC) memory slots.

    Post I/O

    power source

    1 standard 2.5mm DC power socket, supporting DC12V~19V input.

    HDMI

    Provide one standard D socket.

    VGA

    Standard DB15 socket

    Ethernet

    1 Realtek Gigabit NIC

    Audio

    1 (Mic-in, Line-out)

    USB port

    4 USB 3.0

    Internal connector

    USB port

    5 (one FUSB can switch out two USB2.0 interfaces)

    serial port

    1 (RS232 mode only)

    power amplifier

    1*4Pin black socket, supporting up to 2 speakers with 5W2.

    serial ata

    Two SATA3.0 interfaces and two 1*4Pin power supply interfaces are provided.

    LVDS interface

    Support single (dual) channel 18(24) bits

    JVGA

    1*12Pin pin (VGA and JVGA can only be selected)

    M.2

    Support NGFF/NVME M.2 hard disk.

    Mini M.2

    Support WIFI module

    PWR interface

    1 2*2Pin power socket, supporting DC12V~19V input.

    J_HDMI1

    1*16Pin pin (you can only choose between HDMI1 and J_HDMI1)

    JAT1

    1*3Pin incoming call boot pin

    JPWR-LVDS

    LVDS screen voltage jumper pin

    JPM

    JPM:2.0

    JBKLT-PWR

    LVDS screen power supply pin

    power consumption

    Maximum power

    Standby power consumption: 7.6W Full load power consumption: 68.4W

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-10 ~ 70℃ Humidity: 5%~95%

    Temperature: -40~70℃ Humidity: 5%~95%

    DC power supply

    DC12V~19V power input

    Physical size

    measure

    170 mm x 170 mm
