    6th 7th 8th 9th GEN lga1151 AIO Mainboard All In One Intel H110 Mini Itx Motherboard

    Ask Lasest Price
    Model Number : AIO-H110D39M-V1.11
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

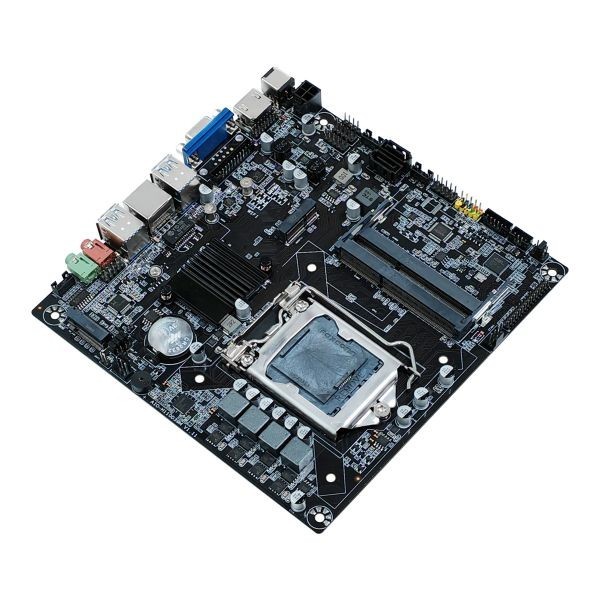

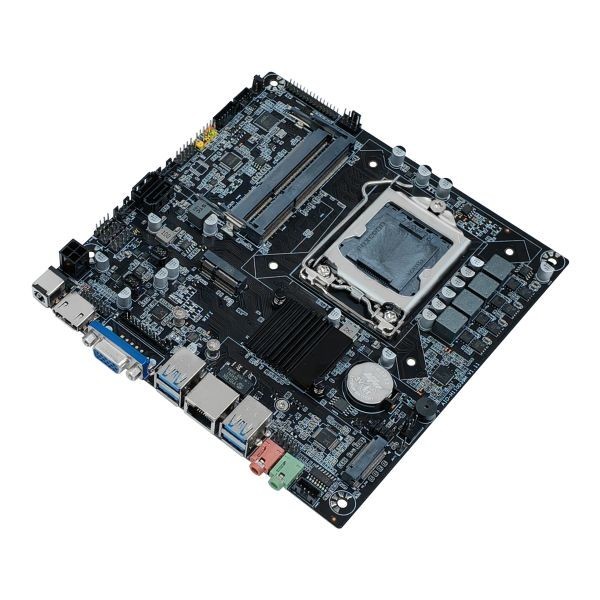

    6th 7th 8th 9th GEN lga1151 AIO Mainboard All In One Intel H110 Mini Itx Motherboard


    l Support 6th, 7th, 8th and 9th generation Intel processors.

    (Celeron, Core I3, I5 and I7 series are supported)

    l Support dual-channel SO-DIMM DDR3 memory

    l 1× M.2 WIFI slot

    l 1 M.2 slot (supporting NGFF/NVME mode)

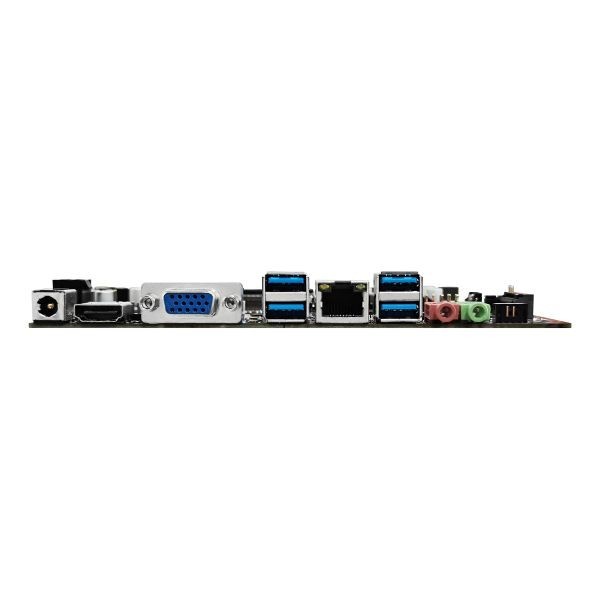

    l The rear IO provides 4xUSB3.0.

    l Built-in pin can expand 5 USB2.0 interfaces.

    l 1 x HDMI,1x VGA,1 x LVDS

    l 2x SATA

    l 1 x Gigabit network card, supporting PXE and network wake-up function.


    Model Name

    AIO-H110D39M

    Motherboard chip

    Intel H110

    CPU

    Intel 6th, 7th, 8th and 9th generation CPU

    Optional: I3-6100, I3-7100, I5-7400, I5-8500, I3-9100, I7-9700, G5400, G3900, etc.

    memory

    2*DDR3 SO-DIMM, 1600MHz/16G, single slot supports up to 8 G.

    Cunzhu

    1*M.2 slot (NGFF/NVME jump cap switching), JM2_SP, JM2_SP1 pins set M.2 mode.

    2*SATA 3.0 interface+2*SATA power interface

    Display interface

    1*HDMI 1.4 interface (either with built-in HDMI), 1*VGA interface (either with built-in VGA), 1*LVDS interface.

    network

    1*RJ45 interface

    Network card chip

    Realtek RTL8111H Gigabit NIC Chip

    WIFI

    1*M.2 WIFI slot

    audio frequency

    1*Line out 1*MIC In 1*F_Audio built-in pin; 1*JAMP built-in power amplifier pin

    Audio chip

    Realtek ALC897 HD Audio Chip

    Usb interface

    IO interface: 4 * USB 3.0; Built-in pins: 3 sets of USB2.0 pins (5 USB2.0 ports can be expanded)

    LVDS function

    1*LVDS 30Pin pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V);

    1*3Pin backlight positive and negative jump cap, 1*3Pin closes/opens LVDS pin.

    Support copy/extended display

    LVDS backlight function

    1*6Pin INVERTER interface, 1*4Pin manual adjustment of backlight pin.

    Functional pin

    1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan

    Power input

    1*DC socket; 2*2Pin built-in power socket (DC12V~19V power input)

    product size

    Thin Mini-ITX motherboard specification, 170 x 170 mm x 6L

    Working temperature

    -10~60

    Working humidity requirements

    10%~90% without condensation

    Storage temperature

    -25~70

    power consumption

    Standby power consumption: 9.5W Full load power consumption: 80W

    other

    1 JCMOS jump cap; 2*5Pin diagnostic card interface; 1*ME pin
