    motherboard pc all in one AIO-H110D49M-V1.3 DDR4 Intel 6th 7th 8th 9th GEN LGA1151 Mini-ITX motherboard

    Ask Lasest Price
    Model Number : AIO-H110D39M
    Payment Terms : Western Union,T/T,MoneyGram
    Supply Ability : 10000pcs/Day
    Delivery Time : 5-8 working Days
    • Product Details
    • Company Profile

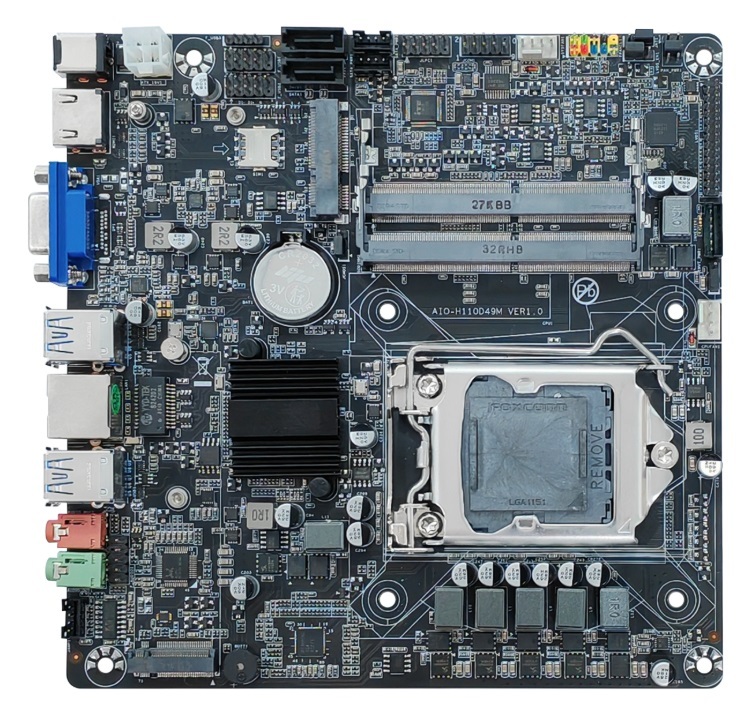

    motherboard pc all in one AIO-H110D49M-V1.3 DDR4 Intel 6th 7th 8th 9th GEN LGA1151 Mini-ITX motherboard

    l Support Intel 6th, 7th, 8th and 9th generation processors.

    (Celeron, Core I3, I5 and I7 series are supported)

    l Support dual-channel SO-DIMM DDR4 memory

    l 1× Mini PCIE WIFI(4G) slot

    l 1 M.2 2280/2240 slot (supporting NGFF/NVME mode)

    l The rear IO provides 4xUSB3.0.

    l Built-in pin can expand 5 USB2.0 interfaces.

    l 1 x HDMI,1x VGA,1 x LVDS

    l 1 x COM,2x SATA

    l 1 x Gigabit network card, supporting PXE and network wake-up function.

    l Support DC12V~19V power input

    l Windows 10,Windows 11,Linux


    motherboard pc all in one AIO-H110D49M Advantages:

    Model Name

    AIO-H110D49M

    Motherboard chip

    Intel H110

    CPU

    Intel 6th, 7th, 8th and 9th generation CPU

    Optional: I3-6100, I3-7100, I5-7400, I5-8500, I3-9100, I7-9700, G5400, G3900, etc.

    memory

    2*DDR4 SO-DIMM, 2400, 2666MHz/16G, single slot supports up to 16G.

    Cunzhu

    1*M.2 slot (NGFF/NVME automatic switching); 2*SATA 3.0 interface+2*SATA power interface

    Display interface

    1*HDMI interface, 1*VGA interface, 1*LVDS interface

    network

    1*RJ45 interface

    Network card chip

    Realtek RTL8111H Gigabit NIC Chip

    WIFI

    1*Mini PCIE WIFI/4G module slot

    audio frequency

    1*Line out 1*MIC In 1*F_Audio built-in pin; 1*JAMP built-in power amplifier pin

    Audio chip

    Realtek ALC897 HD Audio Chip

    serial port

    Serial port only supports RS232 mode.

    Usb interface

    IO interface: 4 * USB 3.0; Built-in pins: 3 sets of USB2.0 pins (5 USB2.0 ports can be expanded)

    LVDS function

    1*LVDS 30Pin pin, 2*3Pin screen voltage jump cap (3.3v/5v/12v); 1*3Pin turns off/on LVDS jump cap.

    Support copy/extended display

    LVDS backlight function

    1*6Pin INVERTER interface; 1*3Pin screen backlight voltage jump cap (5V/12V)

    Functional pin

    1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin SYS fan

    Power input

    1*DC socket; 2*2Pin built-in power socket (DC12V~19V power input)

    product size

    Thin Mini-ITX motherboard specification, 170 x 170 mm x 6L

    Working temperature

    -10~60

    Working humidity requirements

    10%~90% without condensation

    Storage temperature

    -25~70

    power consumption

    Standby power consumption: 8W Full load power consumption: 97W

    other

    1 JCMOS jump cap; 1 JAT jump cap; 2*5Pin diagnostic card interface





    motherboard factory 33.jpg

    FAQ

    Q1. Can I get a sample for testing?

    Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.

    Q2. What's your MOQ?

    Re: MOQ 1 pcs.

    Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?

    Re: Yes we can. The main advantage of our factory is customization,The charges for OEM service depends on the different level of customize. the process of customization is

    following:

    1) provide your specific requirement.

    2) our design engineer draw the design draft.

    3) you confirm the design draft.

    4) we start produce it. EXCALY contact information:Whatsapp:+8615008476368, Wechat:15008476368, skype:sophiagiga

    Q4. Can you print my logo on motherboard ?

    Re: Yes, we can silkscreen logo on heatsink, bios as open computer show your Logo

    MOQ is 300 pcs.if you need with PCB logo, then need 1K pcs for each model.

    Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?

    Re: Yes it can be working in 24h*7 days, working temperature range-10℃~60℃, storage temperature range-40℃~70℃

    Q6. What is the lead time of your products?

    Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on model and order qty) ,we will test the model

    to insure the quality before shipping.

    Q7. What payment method do you accept?

    Re: We accept T/T,Paypal, Western Union

    Q8. How will you delivery the device to me?

    Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.

    Q9.What's the warranty?

    Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories)
