    Intel HM65 2 3rd Core ITX Intel PGA989 Motherboard X86 Desktop Motherboard

    Intel HM65 2-3rd Core ITX Dual Display Port HD VGA W/Intel PGA988 Socket X86 Desktop Motherboard


    Placas-mãe All-in-One AIO-HM65D39M advatages:

    l on the basis of Cougar Point Platform design

    l Support 2nd/3rd generation Intel, Core I3, I5 and I7 processors.

    l Supports dual-channel SO-DIMM DDR3L memory.

    l 1* M.2 WIFI slot

    l 1* M.2/SSD slot (supports pin skipping to switch NGFF/NVME)

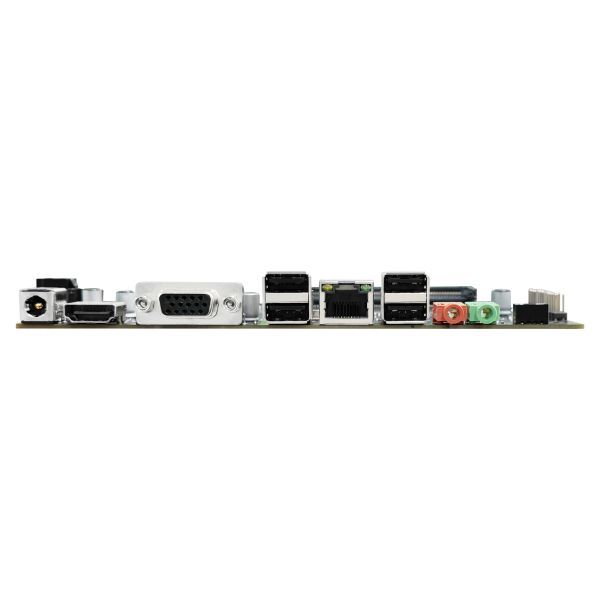

    l The rear IO provides 4xUSB2.0.

    l Built-in pin can expand 6 USB2.0 interfaces.

    l 1 x HDMI 1.4A,1 x VGA ,1 x LVDS

    l 1x COM



    Placas-mãe All-in-One AIO-HM65D39M features:

    Model NameAIO-HM65D39M
    Motherboard chipsetIntelCougar Point
    CPUIntel 2nd/3rd generation Core I3, I5, I7 CPU, TDP:35W
    Optional: I3-2310M, I3-2350M, I5-3210M, I5-3230M.
    memory2*DDR3L SO-DIMM, 1600MHz/16G, single slot supports up to 8G.
    Cunzhu1*M.2 slot (supports pin skipping to switch NGFF/NVME); Through JMS1/JMS2 pin setting
    2*SATA 3.0(1*SATA 3.0/1*SATA 2.0) interface+1*SATA power interface.
    Display interface1*HDMI 1.4A interface, 1*VGA interface (VGA or JVGA), 1*LVDS interface.
    network1*RJ45 interface
    Network card chipRealtek RTL8111H Gigabit NIC Chip
    WIFI1*M.2 WIFI slot
    audio frequency1*Line out, 1*MIC In, 1*F_Audio built-in pin; 1*JAMP built-in power amplifier pin
    Audio chipRealtek ALC897 HD Audio Chip
    serial port1*9Pin serial port pin
    Serial port only supports RS232 mode.
    Usb interfaceIO interface: 4 USB2.0;; Built-in pins: 3 sets of USB2.0 pins (6 USB2.0 ports can be expanded)
    LVDS function1*LVDS 30Pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V)
    LVDS supports replication/extended display.
    LVDS backlight function1*6Pin JBKLT_PWR interface
    Functional pin1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan
    Power input1*DC socket; 1*4Pin ATX power socket (DC12V~19V power input)
    product sizeThin Mini-ITX motherboard specification, 170 x 170 mm x 4L
    Working temperature-10℃~60℃
    Working humidity requirements10%~90% without condensation
    Storage temperature-25℃~70℃
    power consumptionStandby power consumption: 18W Full load power consumption: 75.6W
    other1 JCMOS jump cap; 1*4Pin SPEAK (buzzer)

    AIO-HM65D39M-V1.0 1.jpgAIO-HM65D39M-V1.0 2.jpgAIO-HM65D39M-V1.0 3.jpgAIO-HM65D39M-V1.0 4.jpg




    motherboard factory 33.jpg

    FAQ

    Q1. Can I get a sample for testing?

    Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.

    Q2. What's your MOQ?

    Re: MOQ 1 pcs.

    Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?

    Re: Yes we can. The main advantage of our factory is customization,The charges for OEM service depends on the different level of customize. the process of customization is

    following:

    1) provide your specific requirement.

    2) our design engineer draw the design draft.

    3) you confirm the design draft.

    4) we start produce it. EXCALY contact information:Whatsapp:+8615008476368, Wechat:15008476368, skype:sophiagiga

    Q4. Can you print my logo on motherboard ?

    Re: Yes, we can silkscreen logo on heatsink, bios as open computer show your Logo

    MOQ is 300 pcs.if you need with PCB logo, then need 1K pcs for each model.

    Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?

    Re: Yes it can be working in 24h*7 days, working temperature range-10℃~60℃, storage temperature range-40℃~70℃

    Q6. What is the lead time of your products?

    Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on model and order qty) ,we will test the model

    to insure the quality before shipping.

    Q7. What payment method do you accept?

    Re: We accept T/T,Paypal, Western Union

    Q8. How will you delivery the device to me?

    Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.

    Q9.What's the warranty?

    Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories)
