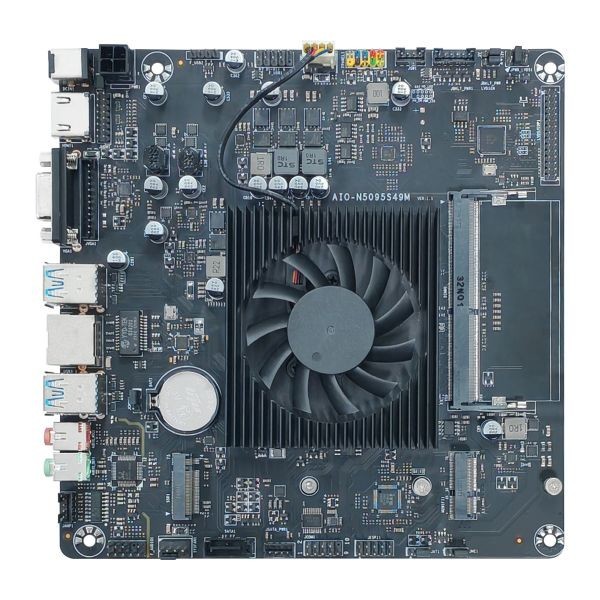

    Intel N5095 Jasper Lake Motherboard CPU SATA Hard Drive Motherboard

    Ask Lasest Price
    Model Number : AIO-N5095S49M-V1.12
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    Intel N5095 Jasper Lake Motherboard CPU SATA Hard Drive Motherboard

    Motherboard Jasper Lake N5095 CPU SATA Hard Drive Interface Mainboard


    AIO-N5095S49M all-in-one motherboard, based on Intel.Celeron-N series The processor and motherboard support single-channel memory, SATA, M.2(NGFF/NVME) mode SSD, RJ45/M.2 WIFI different network access modes, and also support rich peripheral interfaces to adapt to many different types of all-in-one machines in the industry.


    l Based on Intel Jasper Lake Platform design

    l Support Intel Celeron-N series processor

    l Support single-channel SO-DIMM DDR4 memory

    l 1× M.2 2230 slot (supporting M.2 WIFI)

    l 1× M.2 2280/2240 slot (supporting NGFF/NVME mode)

    l The rear IO provides 4xUSB3.0.

    l Built-in pin can expand 3 USB2.0 interfaces.

    l 1 x HDMI ,1 x VGA ,1 x LVDS

    l 1 x COM

    l 1 x Gigabit network card, supporting PXE and network wake-up function.


    Model Name

    AIO-N5095S49M-V1.12

    Motherboard chip

    Intel N5095

    CPU

    IntelCeleron-N series

    Optional: N5095

    memory

    1*DDR4 SO-DIMM, 2933MHz, single slot maximum support 32G.

    Cunzhu

    1*M.2 2280/2240 slot (adaptive NGFF/NVME); 1*SATA 3.0 interface+1*SATA power interface

    Display interface

    1*HDMI interface, 1*VGA interface, 1*LVDS interface

    Built-in JHDMI(HDMI and JHDMI can only be selected); Built-in JVGA(VGA and JVGA can only be selected)

    network

    1*RJ45 interface

    Network card chip

    Realtek RTL8111H Gigabit NIC Chip

    WIFI

    1*M.2 2230 slot (M.2 WIFI)

    audio frequency

    1*Line out; 1*MIC In; 1*F_Audio built-in pin, power amplifier

    Audio chip

    Realtek ALC897 HD Audio Chip

    serial port

    1*9Pin serial port pin

    Usb interface

    IO interface: 4 * USB 3.0; Built-in pins: 2 sets of USB2.0 pins (3 USB2.0 ports can be expanded)

    LVDS function

    1*LVDS 30Pin, 2*3Pin display voltage pin (3.3V/5V/12V), 1*3Pin LVDS_EN pin.

    Backlight function

    1*6Pin INVERTER interface, 1*3Pin screen backlight voltage jump cap (5V/12V).

    1*3Pin backlight reverse pin; 1*4Pin JSW Manually Adjust Backlight

    Functional pin

    1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin SYS fan

    Power input

    1*DC socket; 2*2Pin built-in power socket (DC12V~19V power input)

    product size

    Thin Mini-ITX motherboard specification, 170 x 170 mm x 4L

    Working temperature

    -10℃~60℃

    Working humidity requirements

    10%~90% without condensation

    Storage temperature

    -25℃~70℃

    power consumption

    Standby power consumption: 9.5W Full load power consumption: 58.9W

    other

    1*3Pin JCMOS jump cap; 1*3Pin JAT jump cap; 1*3Pin JME jump cap
