A520 A520M M.2 Motherboard For Desktop Computer AM4 Socket PC Mainboard

    Buy cheap A520 A520M M.2 Motherboard For Desktop Computer AM4 Socket PC Mainboard from wholesalers

    Buy cheap A520 A520M M.2 Motherboard For Desktop Computer AM4 Socket PC Mainboard from wholesalers
    • Buy cheap A520 A520M M.2 Motherboard For Desktop Computer AM4 Socket PC Mainboard from wholesalers

    A520 A520M M.2 Motherboard For Desktop Computer AM4 Socket PC Mainboard

    Ask Lasest Price
    Brand Name : OEM
    Model Number : A520-DS4-V1.1 motherboard
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 10000pcs/Day
    Delivery Time : 5-8 working Days
    • Product Details
    • Company Profile

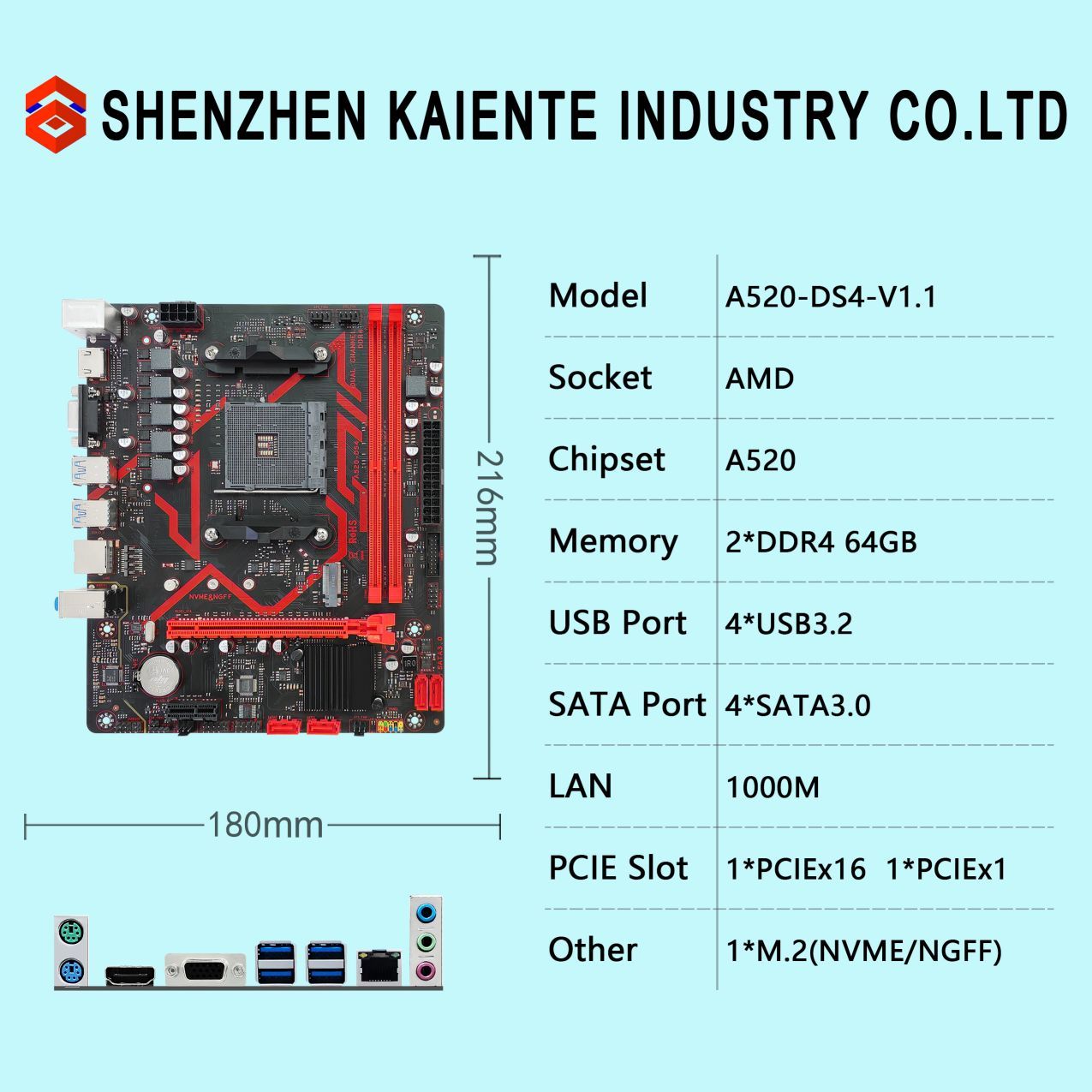

    A520 A520M M.2 Motherboard For Desktop Computer AM4 Socket PC Mainboard

    A520 A520M M.2 Motherboard for Desktop Computer AM4 Socket PC Mainboard for AMD 3rd Gen 1000-5000 Series


    l Support AMD Ryzen series processors

    l Support DDR4 dual-channel memory

    l Supports 4 SATA3.0 high-speed interfaces.

    l Support 1 M.2 interface.

    l Support 6 USB 3.2 and 2 USB2.0.

    l Support 1 PCIEX16 4.0 and 1 PCIEX1.

    l Support 1 Gigabit network port

    l Support 5-phase power supply

    l Support WIN10 /WIN11 64-bit operating system

    Model Name

    A520-DS4-V1.0

    processor

    Support AMD Ryzen 5000,5000G series /4000,4000G series /3000,3000G series processors.

    Southbridge

    A520/B550 Chipset Series

    memory

    technology

    Dual-channel DDR4 2133/2400/2666/3200 (supporting XMP)

    maximum capacity

    64 GB

    Memory slot

    2 * 288pindr4 memory slot

    Post I/O

    PS/2

    1 (supports a PS/2 keyboard and mouse)

    Display interface

    1 VGA; 1 HDMI

    Usb interface

    4 USB3.2

    Ethernet

    1 Gigabit network card

    Audio

    1 (Mic-in,Line-out,line-in)

    Internal connector

    USB3.2

    2 (1 FUSB can be transferred out of 2 USB3.2Gen2)

    USB2.0

    2 (1 FUSB can be transferred out of 2 USB2.0)

    serial port

    1 COM port

    PCIe

    2 (1 PCIeX16 ,1 PCIeX1)

    M.2

    1 NVME/NGFF M.2

    ATXPWR interface

    1 standard 1X8PIN power socket; 1 standard 1X24PIN power socket

    Audio

    1 x 2x5PIN pin

    Size

    measure

    180MM x 216MM






    motherboard factory 33.jpg
    FAQ

    Q1. Can I get a sample for testing?
    Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.


    Q2. What's your MOQ?
    Re: MOQ 1 pcs.


    Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
    Re: Yes we can. The main advantage of our factory is customization,The charges for OEM service depends on the different level of customize. the process of customization is
    following:
    1) provide your specific requirement.
    2) our design engineer draw the design draft.
    3) you confirm the design draft.
    4) we start produce it. EXCALY contact information:Whatsapp:+8615008476368, Wechat:15008476368, skype:sophiagiga

    Q4. Can you print my logo on motherboard ?
    Re: Yes, we can silkscreen logo on heatsink, bios as open computer show your Logo
    MOQ is 300 pcs.if you need with PCB logo, then need 1K pcs for each model.

    Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?
    Re: Yes it can be working in 24h*7 days, working temperature range-10℃~60℃, storage temperature range-40℃~70℃

    Q6. What is the lead time of your products?
    Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on model and order qty) ,we will test the model
    to insure the quality before shipping.

    Q7. What payment method do you accept?
    Re: We accept T/T,Paypal, Western Union

    Q8. How will you delivery the device to me?
    Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.


    Q9.What's the warranty?
    Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories)
