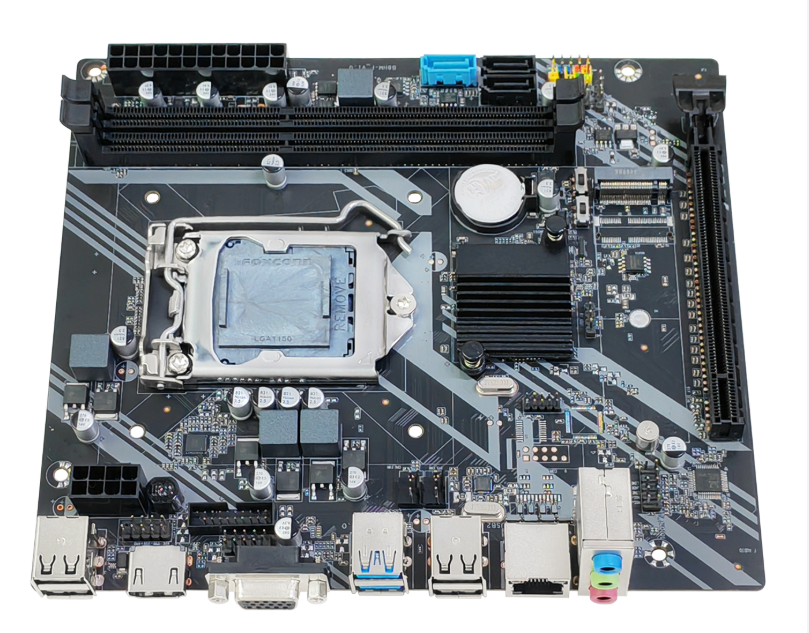

    H81 DDR3 INTEL LGA1150 Mainboard 2th 3th Generation Desktop PC Motherboard

    Ask Lasest Price
    Model Number : H81 B8H M-F
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    H81 DDR3 INTEL LGA1150 Mainboard 2th 3th Generation Desktop PC Motherboard

    High Quality H81 Motherboard DDR3 1150 LGA Mainboard 2th 3th Generation Desktop PC Computer Motherboard

    Features (product features)

    ▲ Support for Core i7/i5/i3/Pentium/Celeron LGA1150 pin series processors.

    ▲ Support 4 SATA interfaces and 10 USB interfaces.

    ▲ Support technology high-speed DDR3 dual-channel memory slot: support 1066/1333/1600MHz, with a maximum capacity of 16G memory.

    ▲ Supports 5.1-channel ALC897 chip.

    ▲ The transmission speed of high-speed USB3.0 interface is improved again.

    ▲ Support for PCIE expansion slots *1

    ▲RJ45 Gigabit NIC interface

    ▲ Support Win7 and Win10 32/64 bit operating systems.


    processor

    LGA1150 Core i7/i5/i3/Pentium/Celeron

    Southbridge

    Intel H81 Chipset series

    memory

    technology

    Dual channel DDR3 1066/1333/1600MHz

    maximum capacity

    16GB

    Memory slot

    2 * 240 PIN DDR3

    Post I/O

    Display interface

    1 VGA; 1 HDMI

    USB port

    2 USB 3.0; 4 USB 2.0

    Ethernet

    1 Realtek Gigabit NIC

    Audio

    1 (Mic-in, Line-out, Line-in)

    Internal connector

    USB 2.0

    2 (one JUSB can switch out two USB 2.0 interfaces)

    USB 3.0

    2 (one JUSB can switch out two USB 3.0 interfaces)

    PCIE

    1 PCIE x16

    ATXPWR interface

    1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket

    Audio

    1 x 2x5Pin pin

    serial ata

    4 SATA interfaces (2 SATA3.0,2 SATA2.0)

    JLPC

    1 x 2x5Pin pin

    FAN

    2 (1 CPU_FAN,1 SYS_FAN)

    Physical size

    measure

    170 mm x 190 mm
