cheap computer motherboard wholesale DDR3 INTEL LGA1150 Motherboard H81 X8-VB-V2.0 4th GEN CPU Supported

    Buy cheap cheap computer motherboard wholesale DDR3 INTEL LGA1150 Motherboard H81 X8-VB-V2.0 4th GEN CPU Supported from wholesalers

    Buy cheap cheap computer motherboard wholesale DDR3 INTEL LGA1150 Motherboard H81 X8-VB-V2.0 4th GEN CPU Supported from wholesalers
    • Buy cheap cheap computer motherboard wholesale DDR3 INTEL LGA1150 Motherboard H81 X8-VB-V2.0 4th GEN CPU Supported from wholesalers
    • Buy cheap cheap computer motherboard wholesale DDR3 INTEL LGA1150 Motherboard H81 X8-VB-V2.0 4th GEN CPU Supported from wholesalers

    cheap computer motherboard wholesale DDR3 INTEL LGA1150 Motherboard H81 X8-VB-V2.0 4th GEN CPU Supported

    Ask Lasest Price
    Model Number : H81 X8-VB-V2.0
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 10000pcs/Day
    Delivery Time : 5-8 working Days
    • Product Details
    • Company Profile

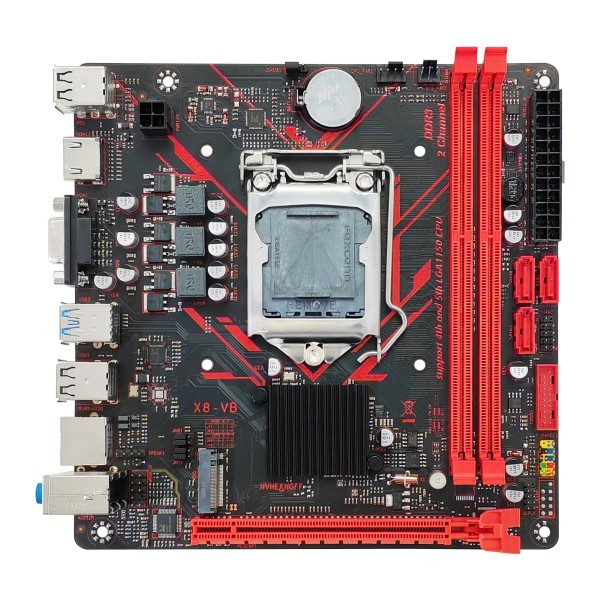

    cheap computer motherboard wholesale DDR3 INTEL LGA1150 Motherboard H81 X8-VB-V2.0 4th GEN CPU Supported


    l Support LGA 1150 Intel series processors.

    l Support dual-channel DDR3 DIMM memory

    l 3* SATA socket

    l 1x M.2 2280/2260/2240 Slot (supporting NVME/NGFF mode)

    l The rear IO provides 4xUSB2.0/2xUSB3.0.

    l Built-in pins can be extended by 4 USB2.0.

    l 1 x 100 MB network card, supporting PXE and network wake-up function.

    l 1 x PCIE X8 slot

    l Support 24Pin+4Pin ATX power input.

    l Windows 7 Windows 10


    ModelH81 X8-VB V2.0
    Motherboard chipIntel H81
    CPUInteI LGA 1150-pin series CPU
    Optional: I3-4370/I5-4460/I7-4770 and so on.
    memory2*DDR3 DIMM, 1600MHz/16G, single slot supports up to 8G.
    Cunzhu1* M.2 slot (NVME/NGFF protocol); 1*SATA3.0 interface /2*SATA2.0 interface
    Display interface1*HDMI 1.4 interface, 1*VGA interface
    network1*RJ45 interface
    Network card chipRealtek RTL8105E 100M network card chip
    PCIE slot1*PCIE X8 slot
    audio frequency1*Line out; 1*Mic In; 1*Line In; 1*F_Audio built-in pin
    Audio chipRealtek ALC897 HD Audio Chip
    Usb interfaceIO interface: 4*USB2.0/2*USB3.0
    Built-in pins: 1 set of USB2.0 pins and 1 set of USB3.0 pins (4 USB2.0 ports can be expanded).
    Functional pin1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan
    Power input24Pin+4Pin ATX power socket
    product size170 x 170mm x 4L; ITX motherboard
    Working temperature-10℃~60℃
    Working humidity requirements10%~90% without condensation
    Storage temperature-25℃~70℃
    power consumptionStandby power consumption: 20~50W Full load power consumption: 80~120W
    other2*5Pin diagnostic card interface; 1*COMS jump cap

    cheap computer motherboard wholesale DDR3 INTEL LGA1150 Motherboard H81 X8-VB-V2.0 4th GEN CPU Supported

    cheap computer motherboard wholesale DDR3 INTEL LGA1150 Motherboard H81 X8-VB-V2.0 4th GEN CPU Supported

    motherboard factory 33.jpg


    FAQ


    Q1. Can I get a sample for testing?

    Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.


    Q2. What's your MOQ?

    Re: MOQ 1 pcs.


    Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?

    Re: Yes we can. The main advantage of our factory is customization,The charges for OEM service depends on the different level of customize. the process of customization is

    following:

    1) provide your specific requirement.

    2) our design engineer draw the design draft.

    3) you confirm the design draft.

    4) we start produce it. EXCALY contact information:Whatsapp:+8615008476368, Wechat:15008476368, skype:sophiagiga


    Q4. Can you print my logo on motherboard ?

    Re: Yes, we can silkscreen logo on heatsink, bios as open computer show your Logo

    MOQ is 300 pcs.if you need with PCB logo, then need 1K pcs for each model.


    Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?

    Re: Yes it can be working in 24h*7 days, working temperature range-10℃~60℃, storage temperature range-40℃~70℃


    Q6. What is the lead time of your products?

    Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on model and order qty) ,we will test the model

    to insure the quality before shipping.


    Q7. What payment method do you accept?

    Re: We accept T/T,Paypal, Western Union


    Q8. How will you delivery the device to me?

    Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.


    Q9.What's the warranty?

    Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories)
