bulk computer motherboard prices Intel H310 INTEL LGA1151 Desktop Computer Motherboard Support Dual Channel DDR4

    Buy cheap bulk computer motherboard prices Intel H310 INTEL LGA1151 Desktop Computer Motherboard Support Dual Channel DDR4 from wholesalers

    Buy cheap bulk computer motherboard prices Intel H310 INTEL LGA1151 Desktop Computer Motherboard Support Dual Channel DDR4 from wholesalers
    • Buy cheap bulk computer motherboard prices Intel H310 INTEL LGA1151 Desktop Computer Motherboard Support Dual Channel DDR4 from wholesalers
    • Buy cheap bulk computer motherboard prices Intel H310 INTEL LGA1151 Desktop Computer Motherboard Support Dual Channel DDR4 from wholesalers

    bulk computer motherboard prices Intel H310 INTEL LGA1151 Desktop Computer Motherboard Support Dual Channel DDR4

    Ask Lasest Price
    Model Number : AB-H310M-VH-V1.0
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 10000pcs/Day
    Delivery Time : 5-8 working Days
    • Product Details
    • Company Profile

    bulk computer motherboard prices Intel H310 INTEL LGA1151 Desktop Computer Motherboard Support Dual Channel DDR4

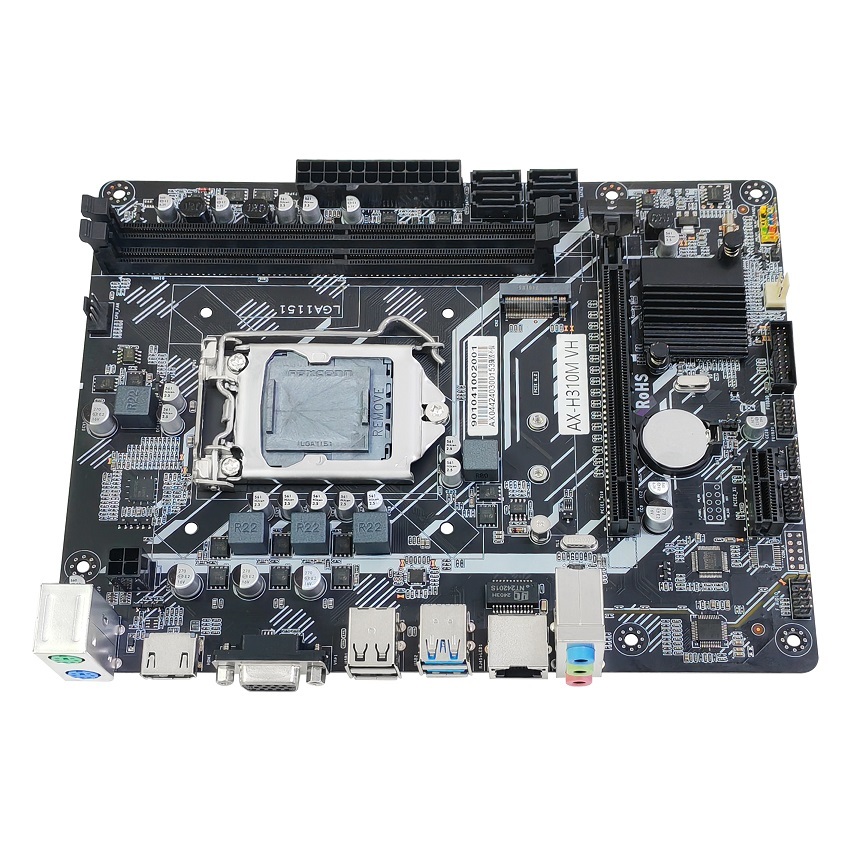

    Motherboard H310 Desktop Motherboard Support Dual Channel DDR4 LGA 1151 CPU Computer Motherboard AB-H310M-VH-V1.0


    Features (product features)

    Processor supporting Intel i3/i5/i7/E3 LGA1151 pin.

    Support M.2*1(PCIE protocol)

    Support 4 SATA interfaces and 8 USB interfaces.

    High-speed DDR4 memory slot: support 2133/2400/2666MHZ.

    Maximum capacity 32G memory

    Support for 5.1 channels

    4-layer PCB backplane with 3+1 phase power supply.

    PCI-E expansion slot *2

    Support RJ45 Gigabit network card


    Socket 1151 motherboard Features:

    processor

    Intel i3/i5/i7/E3 LGA1151 pin processor

    Southbridge

    H310 Chipset series

    memory

    technology

    Dual-channel DDR4 2133/2400/2666MHZ

    maximum capacity

    32GB

    Memory slot

    2 x 288 PIN DDR4

    Post I/O

    Ethernet

    1 Realtek Gigabit NIC

    Audio

    1 (Mic-in, Line-out, Line-in)

    USB3.0 interface

    2 USB 3.0

    USB2.0 interface

    2 USB 2.0

    Display interface

    1 VGA,1 HDMI

    PS/2 port

    1 (PS/2 mouse, PS/2 keyboard)

    Internal connector

    PCIe

    2 (1 PCIe x16;; 1 PCIe x1)

    USB3.0 interface

    2 USB3.0 (one FUSB can switch out two USB ports)

    USB2.0 interface

    2 USB2.0 (one FUSB can switch out two USB ports)

    serial ata

    4 SATA3.0 interfaces

    JATXPWR interface

    1 standard 1x4PIN power socket; 1 standard 1x24PIN power socket

    Audio

    1 x 2x5Pin pin

    JLPC

    1 x 2x5Pin pin

    M.2

    1 x M.2(PCIE protocol)

    environment

    temperature range

    working environment

    Storage environment

    Temperature: 0 ~ 50 C Humidity: 5%~95%

    Temperature:-20 ~ 70 C Humidity: 5%~95%

    Physical size

    measure

    170 mm x 216 mm




    motherboard factory 33.jpg


    FAQ

    Q1. Can I get a sample for testing?
    Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.


    Q2. What's your MOQ?
    Re: MOQ 1 pcs. EXCALY contact information:Whatsapp:+8615008476368, Wechat:15008476368, skype:sophiagiga


    Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
    Re: Yes we can. The main advantage of our factory is customization,The charges for OEM service depends on the different level of customize. the process of customization is
    following:
    1) provide your specific requirement.
    2) our design engineer draw the design draft.
    3) you confirm the design draft.
    4) we start produce it.

    Q4. Can you print my logo on motherboard ?
    Re: Yes, we can silkscreen logo on heatsink, bios as open computer show your Logo
    MOQ is 300 pcs.if you need with PCB logo, then need 1K pcs for each model.

    Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?
    Re: Yes it can be working in 24h*7 days, working temperature range-10~60, storage temperature range-40~70

    Q6. What is the lead time of your products?
    Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on model and order qty) ,we will test the model
    to insure the quality before shipping.

    Q7. What payment method do you accept?
    Re: We accept T/T,Paypal, Western Union

    Q8. How will you delivery the device to me?
    Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.


    Q9.What's the warranty?
    Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
    repair cost (except change new accessories)
