    customizable PC motherboards H311 Motherboard INTEL LGA1151 Dual channel DDR4 HM175 Chipset

    H311 Motherboard LGA 1151 Support In-tel Core/Pentium i3/i5/i7 6th/7th/8th/9th E3 V5 CPU DDR4 Memory H311-DS4-V2.4

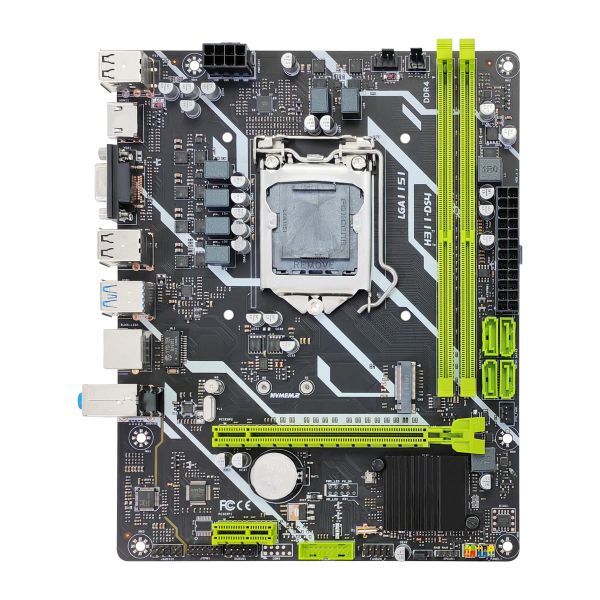

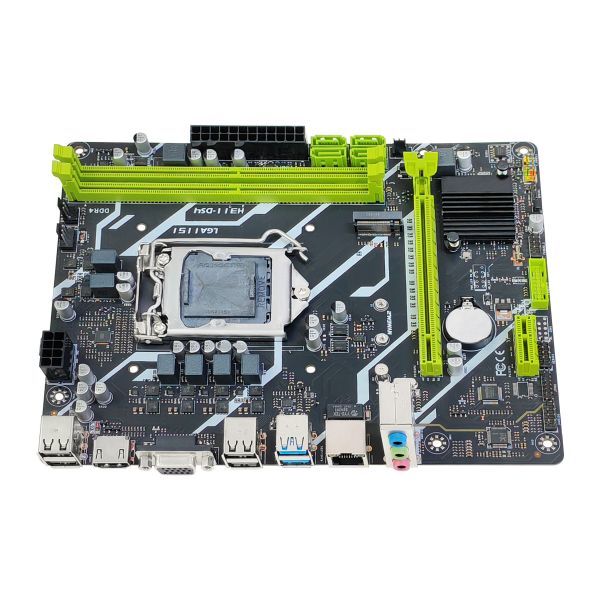

    H311-DS4 V2.4 is an mATX motherboard with Intel 1151 slot, which supports the 6th/7th/8th/9th generation Intel processors. The motherboard supports dual-channel memory, SATA, M.2(NVME) mode SSD, RJ45 network access mode, and also supports rich peripheral interfaces, which is suitable for many different types of mATX motherboards in the industry.


    l Chipset: HM175

    l Dual channel DDR4; Support 2133/2400/2666Mhz.

    l Number of memory slots: 2 DDR4 memory slots

    l 1 M.2 2280/2240 slot (NVME mode)

    l The rear IO provides 4xUSB2.0 and 2xUSB3.2.

    l Built-in pin can extend 2xUSB2.0 interface and 2xUSB3.2

    l 1 xRJ45 gigabit network card interface, supporting PXE and network wake-up function.

    l 1 x PCIE3.0 X16 slot, 1 x PCIE3.0 X1 slot.

    l Support 6-phase CPU power supply, 4-layer PCB

    l Support 24Pin+8Pin ATX power input.

    l Supports 4 SATA3.0 interfaces.

    l Version: M-ATX

    l Support Windows7, Windows S10 and Windows S11.

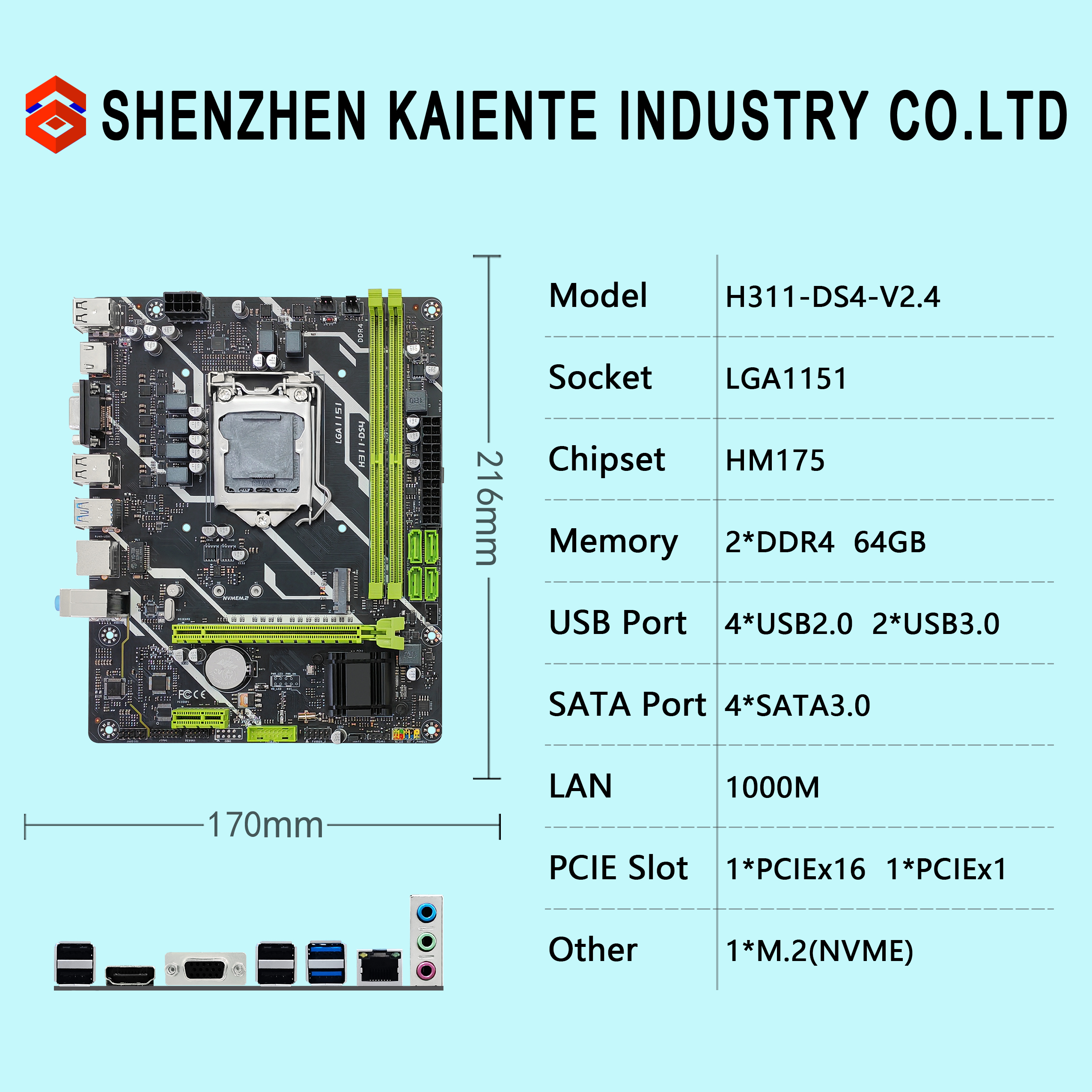

    Model Name

    H311-DS4 V2.4

    chip set

    Intel HM175

    CPU

    Intel Socket LGA1151 GEN 6/7/8/9th

    Memory standard

    Dual channel DDR4; Support 2133/2400/2666Mhz 32GB (16G*2)

    Cunzhu

    1*M.2 slot (nvme pcie 3.0x4); 4*SATA 3.0 interface

    Display interface

    1*VGA,1*HDMI1.4

    network

    1*RJ45 interface

    Network card chip

    Realtek RTL8111H Gigabit NIC Chip

    WIFI

    N/A

    audio frequency

    1*Line out 1*Line In 1*MIC In 1*F_Audio built-in pin

    Audio chip

    Realtek ALC897 HD Audio Chip

    TPM

    1 2x7Pin pin

    Usb interface

    IO interface: 4*USB2.0 2*USB3.2

    Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be expanded)

    1 set of USB3.0 pins (2 USB3.2 ports can be expanded)

    PS/2 interface

    N/A

    PCI-E slot

    1* PCI-E 3.0 X16,1*PCI-E 3.0 X1

    PCB layer number

    4-layer PCB

    Functional pin

    1*FPANEL panel pin; 1*4Pin CPU fan; 2*3Pin SYS fan

    Power input

    ATX 24PIN + 12V_8PIN

    Plate size

    170mm x 216 mm

    Working temperature

    -10~60

    Working humidity requirements

    10%~90% without condensation

    Storage temperature

    -25~70

    power consumption

    Standby power consumption: 40W~60W Full load power consumption: 90W~150W

    other

    1*3Pin JBAT1 jump cap; 2*5Pin diagnostic card interface; 1*3Pin SPEAK;
