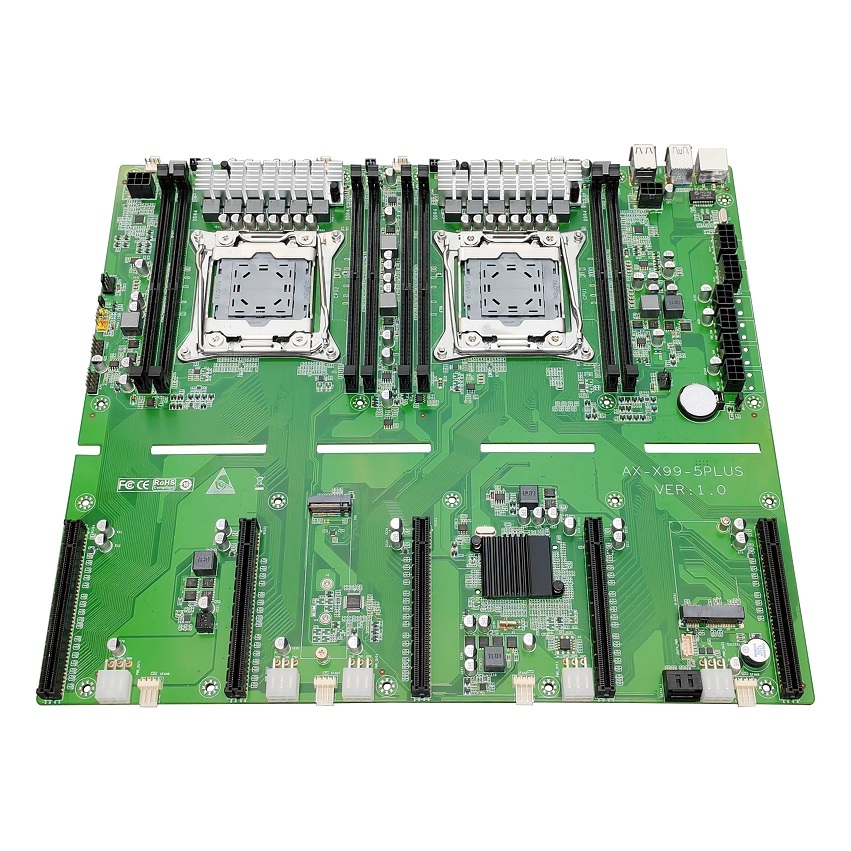

AX-X99-5PLUS V1.0 Crypto Motherboard 5GPU Multi Graphics Card Slot B85 3060 Supported

    Buy cheap AX-X99-5PLUS V1.0 Crypto Motherboard 5GPU Multi Graphics Card Slot B85 3060 Supported from wholesalers

    Buy cheap AX-X99-5PLUS V1.0 Crypto Motherboard 5GPU Multi Graphics Card Slot B85 3060 Supported from wholesalers
    • Buy cheap AX-X99-5PLUS V1.0 Crypto Motherboard 5GPU Multi Graphics Card Slot B85 3060 Supported from wholesalers
    • Buy cheap AX-X99-5PLUS V1.0 Crypto Motherboard 5GPU Multi Graphics Card Slot B85 3060 Supported from wholesalers
    • Buy cheap AX-X99-5PLUS V1.0 Crypto Motherboard 5GPU Multi Graphics Card Slot B85 3060 Supported from wholesalers

    AX-X99-5PLUS V1.0 Crypto Motherboard 5GPU Multi Graphics Card Slot B85 3060 Supported

    Ask Lasest Price
    Model Number : AX-X99-5PLUS V1.0
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 10000pcs/Day
    Delivery Time : 5-8 working Days
    • Product Details
    • Company Profile

    AX-X99-5PLUS V1.0 Crypto Motherboard 5GPU Multi Graphics Card Slot B85 3060 Supported

    Crypto motherboard 5GPU multi graphics card slot supports 3060 B85 with a large spacing of 87mm


    Features (product features)

    ▲ Support Dula Xeon E5 LGA2011-3 series processors.

    ▲ Support 2 SATA interfaces (6Gb/s)

    ▲ Support one M.2 interface (M.2 NVME protocol /M.2 SATA protocol).

    ▲ Support high-speed DDR4 four-channel memory slot: support DDR4 2133/2400/2666MHz, with a maximum capacity of 256GB.

    ▲ Support 2 USB3.0 and 4 USB2.0.

    ▲ Support 5 PCI-E interfaces (spacing: 87MM)

    ▲ Support Realtek Gigabit NIC.

    ▲ Support 6+6 phase power supply.

    ▲ Support Win10 32/64 bit operating system and Linux system.


    Specifications (specifications)

    processor

    Dual Intel Xeon E5 LGA2011-3 series processors

    Southbridge

    C612 Chipset series

    memory

    DDR algebra

    DDR4

    Technology/memory standards

    Quad-channel DDR4 2133/2400/2666MHz

    maximum capacity

    256GB(32GB*8)

    Memory slot

    8 * 288-Pin DDR4 memory slot

    Post I/O

    Usb interface

    2 USB3.0; 2 USB2.0

    Ethernet

    1 Realtek Gigabit NIC

    Internal connector

    FAN

    2 CPU_FAN+8 4Pin horizontal graphics card fan holders

    JLPC

    1 standard 2x5Pin mode interface

    SATA/M-SATA

    2 SATA 6Gb/s+1 M-SATA 6Gb/s

    USB 2.0

    2 (one FUSB can transfer out two USB 2.0 interfaces)

    PCI-E

    5 (4 PCI-E x16 3.0+1 PCI-E x8 3.0) spacing: 87MM

    M.2

    1 M.2(M.2 NVME protocol /M.2 SATA protocol) interface.

    JSATA-PWR

    1 1x4Pin SATA power socket

    Power supply interface

    6 6Pin PWR-IN power supply sockets, 5 6Pin PWR-OUT power supply sockets and 2 8pin PWR-in power supply sockets.

    Physical size

    measure

    330mm x 370mm
