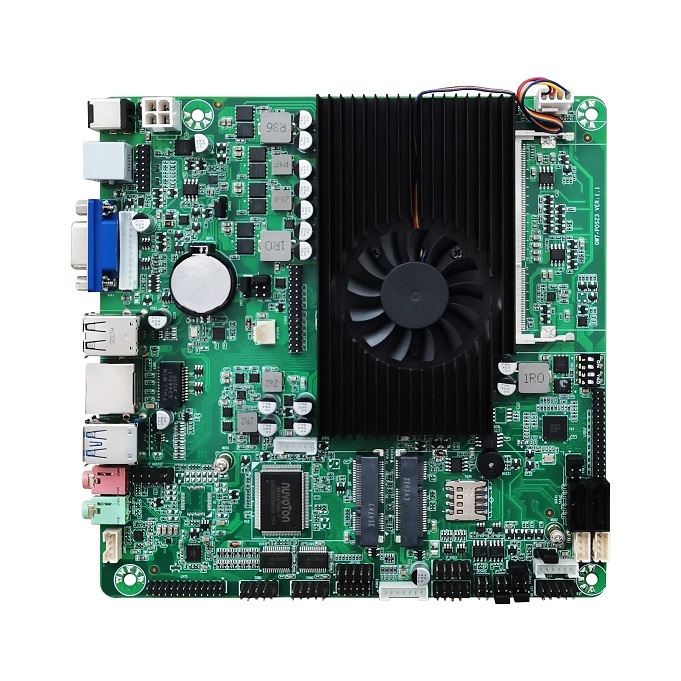

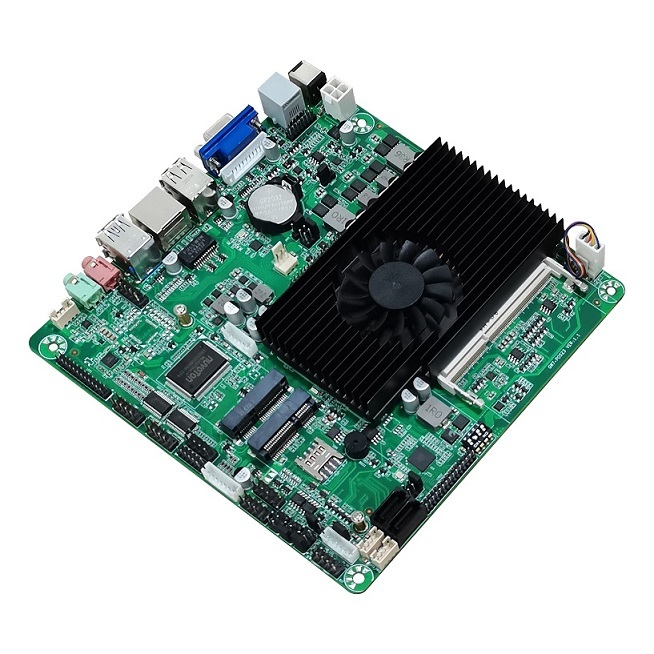

    Rugged Motherboard All In One PC 2th 3th GEN I5-3337U CPU Thin Itx Motherboard VGA 1HDMI LVDS 2K FHD 1920x1080 Dual Display GW7-POS23-V1.1

    All In One PC 2th 3th GEN Thin Itx Motherboard VGA 1HDMI LVDS 2K FHD 1920x1080 Dual Display GW7-POS23-V1.1



    Features

    Support Intel Sandy Bridge/Ivy Bridge series processors.

    Support DDR3L memory, up to 8GB 1600MHz SDRAM.

    Support stereo dual-channel ALC887 chip sound card or USB sound card.

    Support 2 serial ports and 1 parallel port; Support 1 RJ45 Gigabit NIC interface.

    Support 2 USB3.0 and 6 USB2.0.

    Support two 7Pin SATA interfaces and one MSATA interface.

    Support cashbox interface

    Support 1 Mini PCIE expansion slot (including 8pin SIM card slot) and support WIFI/4G Module.

    Support 1 rear VGA interface, 1 pin HDMI interface, 2 LVDS interfaces, and support synchronous dual display.

    Support DC12V power input.



    processor

    Intel Sandy Bridge/Ivy Bridge series processors (such as I5-3337U CPU)

    Southbridge

    HM77

    memory

    technology

    Single channel DDR3L 1600MHz

    maximum capacity

    8GB

    Memory slot

    1 x 204Pin DDR3 SO-DIMM(Non-ECC)

    Post I/O

    power source

    1 standard 2.5mm DC12V power head

    Cashier interface

    Support cashbox interface

    VGA

    Standard DB15 socket (VGA interface and JVGA interface can only be selected)

    Ethernet

    1 RJ45 Realtek Gigabit NIC

    USB

    2 USB3.0 interfaces, 2 USB2.0 interfaces.

    Audio

    1 (Mic-in, Line-out)

    Internal connector

    USB

    4 front USB2.0 interfaces (one FUSB can switch out two USB2.0 interfaces)

    serial port

    2 serial ports, supporting RS232/RS485 mode

    parallel port

    1 parallel port

    JVGA interface

    Supports 1*12Pin pins (VGA and JVGA can only be selected)

    JHDMI interface

    Supports 2*8Pin pins.

    LVDS interface

    Two LVDS interfaces, supporting single (dual) channel 18(24) bits.

    Audio

    1 2*5Pin pin (Mic-in, Line-out)

    power amplifier

    1*4Pin 2.0mm white socket, which can support up to two 5W2 speakers.

    Mini-PCIe

    1 Mini PCIe slot, supporting WIFI and 4G modules.

    MSATA

    Support MSATA hard disk, support SATA3.0 speed.

    serial ata

    Two 7Pin SATA interfaces supporting SATA2.0 speed.

    GPIO

    Supports 3.3V 4-way GPIO interface.

    power source

    One 2x2Pin ATX power outlet is optional.

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 10.8W Full load power consumption: 56.4W

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-40 ~ 70 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    DC power supply

    adapter

    DC 12V power input

    Physical size

    measure

    170 mm x 170 mm
