    Ops Motherboard Processor for H310 I3 I5 I7 Board Network Appliance Motherboard OPS-H310-V1.0

    Ask Lasest Price
    Model Number : OPS-H310-V1.0
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

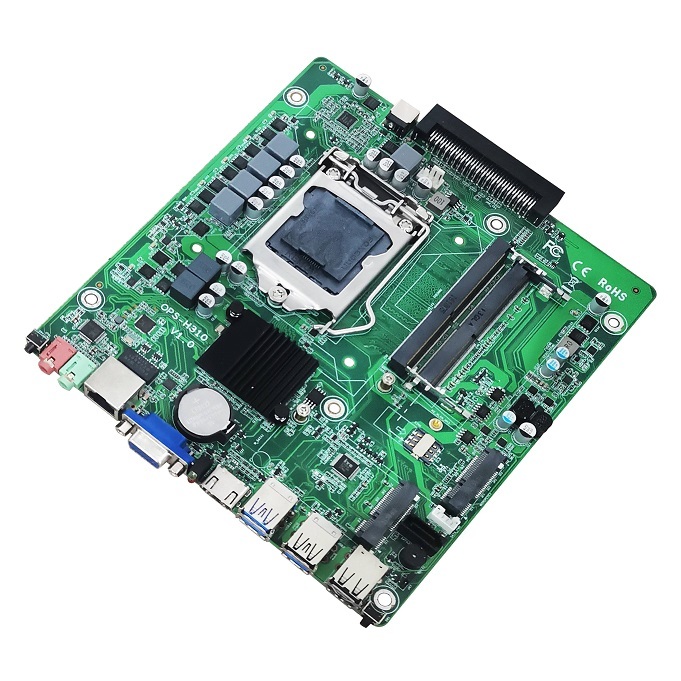

    Ops Motherboard Processor for H310 I3 I5 I7 Board Network Appliance Motherboard OPS-H310-V1.0


    Ops Motherboard Processor for H310 I3 I5 I7 Board Network Appliance Motherboard OPS-H310-V1.0

    Features

    Support Intel desktop 8th and 9th generation processors.

    Support DDR4 dual-channel memory, and support 64GB 2666MHz SDRAM at most.

    Support stereo dual-channel ALC887 chip.

    Support TTL serial port of one expansion daughter card.

    Support 4 USB3.0 interfaces and 6 USB2.0 interfaces.

    Support 1 SATA interface and 1 MSATA interface.

    Support Mini PCIE expansion slot (including 8pin SIM card slot)

    Support one RJ45 Gigabit NIC interface.

    Support 1 rear VGA interface, 1 rear HDMI interface, 1 expansion daughter card HDMI interface, and support synchronous dual display.

    Support DC 19V/12V power input.

    Support Windows10 32/64 bit operating system and



    Model Name

    OPS-H310 Ver:1.1

    processor

    Intel Coffee Lake series

    CPU

    For example, Intel desktop Celeron, Pentium, I3, I5 and I7 CPU are supported (95W CPU is not recommended).

    memory

    technology

    Dual channel DDR4 2666MHz

    maximum capacity

    The maximum support is 64GB, and the maximum single channel support is 32GB.

    Memory slot

    Two 260Pin DDR4 SO-DIMM(Non-ECC) slots.

    Post I/O

    onekey recovery

    1 one-button reset button

    switching push-button

    1 switch button

    Indicator light

    1 power indicator and 1 hard disk indicator

    HDMI

    Standard D socket, supports HDMI1.4, and the maximum resolution is 4096x2304@24Hz.

    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

    Ethernet

    1 RTL8111F Gigabit RJ45 network card

    Audio

    1 audio interface (Line-out, Mic-in)

    USB port

    3 USB3.0 interfaces, 3 USB2.0 interfaces.

    Internal connector

    serial ata

    1 SATA interface, supporting SATA 3.0

    MSATA interface

    1 MSATA interface, supporting SATA 3.0.

    Mini-PCIe

    1 Mini PCIe slot of full-length card, supporting WIFI and 4G modules.

    PWR interface

    1 standard 2.5mm DC power socket, supporting DC19V/12V power input.

    Extended daughter card

    USB

    Expandable 1 USB3.0 interface and 3 USB2.0 interfaces.

    HDMI

    An HDMI interface can be extended to support HDMI1.4, and the maximum resolution is 4096x2304@24Hz.

    serial port

    1 expansion COM port (TTL mode supported)

    power source

    1 standard 2.5mm DC power socket; 1 2x2Pin ATX power socket, all supporting DC19V/12V power input.

    Audio

    1 Line-out

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 8.4W Full load power consumption: 99.6W

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-40 ~ 70 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    Physical size

    measure

    170 mm x 190 mm
