    Celeron J4125 Mini ITX Motherboard DDR4 Pc Motherboard with Processor Quad Core Processor AX-J4125-POS-V2.0

    Ask Lasest Price
    Model Number : AX-J4125-POS-V2.0
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    Celeron J4125 Mini ITX Motherboard DDR4 Pc Motherboard with Processor Quad Core Processor AX-J4125-POS-V2.0

    Celeron J4125 Mini ITX Motherboard DDR4 Pc Motherboard with Processor Quad Core Processor AX-J4125-POS-V2.0


    Features (product features)

    Support Intel Gemini Lake processor.

    Support DDR4 single channel memory, and support 16GB 2400MHz SO-DIMM at most.

    Support stereo dual-channel sound card with onboard power amplifier.

    Support 2 serial ports

    Support one RJ11 cashbox interface.

    Support 3 USB3.0 and 5 USB2.0.

    Support WIFI/4G interface

    Support 1 7Pin SATA interface and 1 MSATA interface.

    Support one RJ45 Gigabit NIC interface.

    Support VGA/LVDS/LVDS1(HDMI) display interface, and support synchronous three displays.

    Support DC12V power input.

    Support Windows10 32/64bit operating system and Linux system.




    Model Name

    AX-J4125-POS VER:2.0

    CPU

    Intel Celeron J4125

    memory

    technology

    Single channel DDR4

    capacity

    The maximum capacity supports 16GB and the maximum frequency supports 2400MHz.

    Memory slot

    1 x 260Pin DDR4 SO-DIMM(Non-ECC)

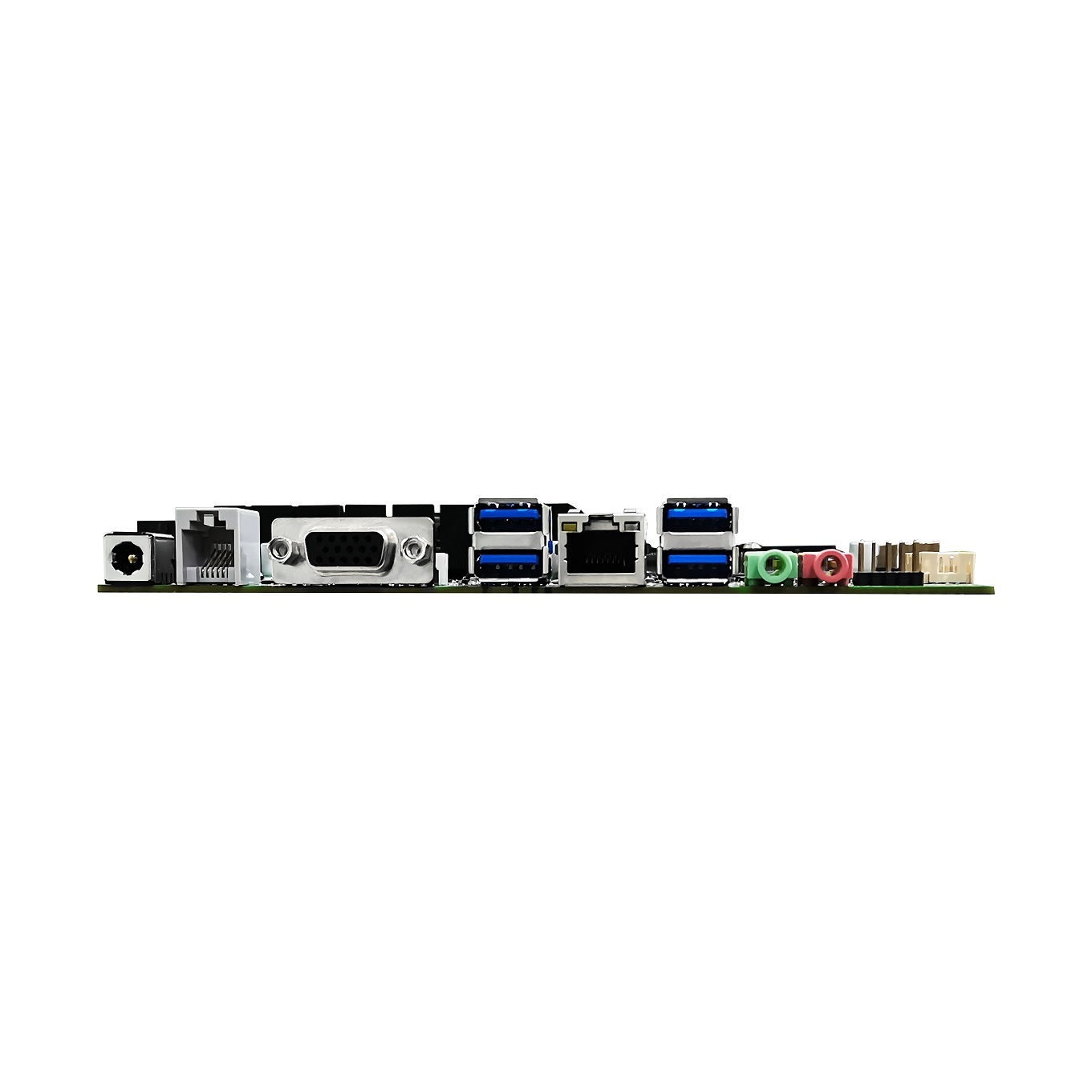

    Post I/O

    power source

    1 standard 2.5mm DC12V power socket

    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz(VGA and JVGA can only be selected).

    Cashier interface

    1 RJ11 cashbox interface

    Ethernet

    1 Realtek Gigabit NIC

    USB port

    3 USB3.0 interfaces and 1 USB2.0 interface.

    Audio

    1 (Line-out, Mic-in)

    Internal connector

    USB port

    4 USB2.0 interfaces (one FUSB can switch out 2 USB2.0 interfaces)

    LVDS interface

    Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.

    LVDS1 interface

    Support single (dual) channel with 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz(LVDS1 and HDMI play together, so you can only choose one).

    JVGA interface

    1*12Pin pin, the maximum supported resolution is 2560*1600@60Hz(VGA and JVGA can only be selected).

    JHDMI

    2*8Pin pin, supporting HDMI1.4, maximum resolution: 4096*2160@30Hz (LVDS1 and HDMI are laid together, so you can only choose one).

    serial ata

    1 7Pin SATA interface (and 1 4Pin SATA power supply interface is provided), which supports SATA 3.0 speed.

    MSATA interface

    Support 1 MSATA hard disk.

    serial port

    2 serial ports, supporting RS232/RS485 mode

    FAudio

    1 2*5Pin pin (Mic-in, Line-out)

    power amplifier

    1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2.

    FPANEL

    1 switch control panel

    Fan interface

    2, 1 CPUFan and 1 SYSFan.

    WIFI/4G

    1 WIFI/4G interface

    GPIO

    8-way bidirectional 3.3V

    PWR interface

    1 standard 2x2PIN DC12V power socket

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 6.4W Full load power consumption: 58.3W

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-40 ~ 70 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    DC power supply

    12V power input

    Physical size

    measure

    170 mm x 170 mm
