best motherboard for gaming PC A320 Chipset A320m Micro Atx Motherboard AM4 AMD DDR4 32GB Desktop Motherboard

    Buy cheap best motherboard for gaming PC A320 Chipset A320m Micro Atx Motherboard AM4 AMD DDR4 32GB Desktop Motherboard from wholesalers

    Buy cheap best motherboard for gaming PC A320 Chipset A320m Micro Atx Motherboard AM4 AMD DDR4 32GB Desktop Motherboard from wholesalers
    • Buy cheap best motherboard for gaming PC A320 Chipset A320m Micro Atx Motherboard AM4 AMD DDR4 32GB Desktop Motherboard from wholesalers
    • Buy cheap best motherboard for gaming PC A320 Chipset A320m Micro Atx Motherboard AM4 AMD DDR4 32GB Desktop Motherboard from wholesalers
    • Buy cheap best motherboard for gaming PC A320 Chipset A320m Micro Atx Motherboard AM4 AMD DDR4 32GB Desktop Motherboard from wholesalers

    best motherboard for gaming PC A320 Chipset A320m Micro Atx Motherboard AM4 AMD DDR4 32GB Desktop Motherboard

    Ask Lasest Price
    Model Number : A320M-AMD-V1.0
    Payment Terms : T/T,Western Union,MoneyGram
    Supply Ability : 10000pcs/Day
    Delivery Time : 5-8 working Days
    • Product Details
    • Company Profile

    best motherboard for gaming PC A320 Chipset A320m Micro Atx Motherboard AM4 AMD DDR4 32GB Desktop Motherboard

    A320M Motherboard AM4 AMD A320 Chipset DDR4 32GB GAMING DESKTOP Micro ATX mainBoard for For Ryzen 5 2600 5600 cpu Used

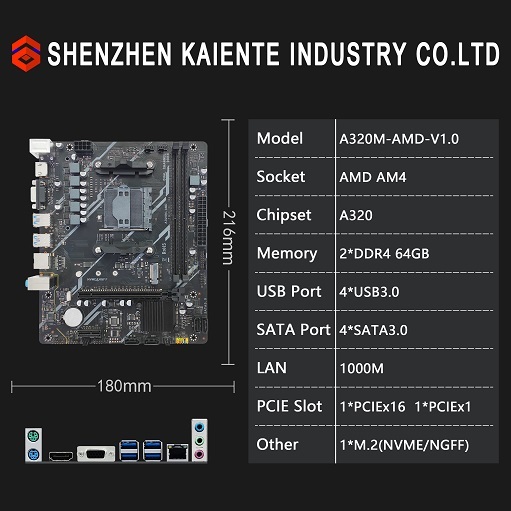

    AM4 Motherboard A320M-AMD V1.0 is an mATX motherboard,

    which supports AMD AM4 socket processor,

    dual-channel memory, SATA, M.2 mode SSD

    RJ45 network access mode.

    supports rich peripheral interfaces,


    l Support AMD AM4 platform processor

    l Support dual-channel DDR4 memory

    l 4* SATA socket

    l 1x M.2 2280/2240 slot (NVME/NGFF automatic switching)

    l The rear IO provides four USB3.0 interfaces.

    l Built-in pins can expand 2 USB2.0 and 2 USB3.0 interfaces.

    l 1 x HDMI,1 x VGA

    l 1 x PS2 keyboard and mouse

    l 1 x Gigabit network card, supporting PXE and network wake-up function.

    1 x PCIE X1 slot, 1 x PCIE X16 slot

    AM4 Motherboard A320M-AMD V1.0 Features:


    Model nameA320M-AMD V1.0
    Processor supportedcpu:AMD AM4 slot (supports the 1st, 2nd, 3rd, 4th and 5th generation CPU of AMD Ryzen)
    ChipsetAMD A320 chip
    MemoryDual-channel memory architecture DDR4 (supporting DDR 4 AM4 Motherboard)
    Memory slot/maximum capacity:Equipped with two 288-Pin DDR4 memory slots, the maximum support is 64G(32G*2).
    Jaudio:1 standard 2x5PIN front panel audio connection pin.
    Functional pin:1*CLR_CMOS pin; 1*SPEAK pin; 1*DEBUG pin
    Storage:1 M.2 SSD interface: support Gen3x4 NVME SSD & SATA 6GB/s SSD; (automatic switching)
    4 SATA 6Gb/s interfaces
    Internal interfaceFUSB(9 PIN):1 (one FUSB20_1 can transfer out two USB2.0 expansion kit data cable connectors)
    FUSB(20 pin):1 (one FUSB30_1 can be transferred out of two USB3.0 expansion kit data cable connectors)
    Fan interface:1 4Pin CPU_FAN; 1 4Pin SYS_FAN; 2 3Pin SYS_FAN
    PCIe:1 PCIe 3 .0 x16+1 PCIe x1 slot (supporting functional expansion cards conforming to PCI Express specifications)
    ATXPWR:1 standard 8Pin power socket+1 standard 24Pin power socket
    Rear panel interfacePS/2:1 PS/2 keyboard/mouse interface
    Display interface:1 VGA+1 HDMI2.0 (supporting synchronous dual display)
    USB port:4 USB3.0 interfaces
    Ethernet:1 Realtek Gigabit LAN
    AUDIO1 (Mic-in, Line-out, Line-in)
    measure216MM x 180MM
    Standby power consumption: 20W Full load power consumption: 125~305W (power consumption is for reference only)
    (If you want to install hardware equipment with high power consumption, please use a high-power power supply.)

    A320M-AMD-V1.0 1.jpgA320.jpgmotherboard factory 3.jpgmotherboard factory 33.jpg


    FAQ

    Q1. Can I get a sample for testing?
    Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.


    Q2. What's your MOQ?
    Re: MOQ 1 pcs. EXCALY contact information:Whatsapp:+8615008476368, Wechat:15008476368, skype:sophiagiga


    Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
    Re: Yes we can. The main advantage of our factory is customization,The charges for OEM service depends on the different level of customize. the process of customization is
    following:
    1) provide your specific requirement.
    2) our design engineer draw the design draft.
    3) you confirm the design draft.
    4) we start produce it.

    Q4. Can you print my logo on motherboard ?
    Re: Yes, we can silkscreen logo on heatsink, bios as open computer show your Logo
    MOQ is 300 pcs.if you need with PCB logo, then need 1K pcs for each model.

    Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?
    Re: Yes it can be working in 24h*7 days, working temperature range-10~60, storage temperature range-40~70

    Q6. What is the lead time of your products?
    Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on model and order qty) ,we will test the model
    to insure the quality before shipping.

    Q7. What payment method do you accept?
    Re: We accept T/T,Paypal, Western Union

    Q8. How will you delivery the device to me?
    Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.


    Q9.What's the warranty?
    Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories)
