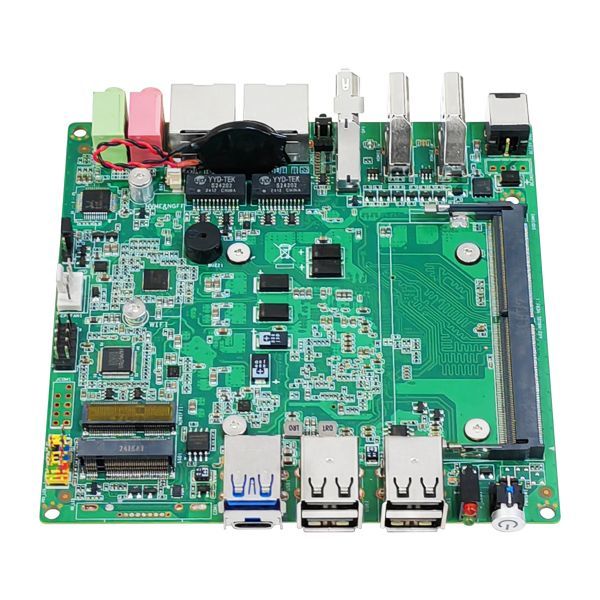

ITX Industrial Embedded Motherboard For IoT N100 CPU 12x12cm Mini Computer Mainboard

    Buy cheap ITX Industrial Embedded Motherboard For IoT N100 CPU 12x12cm Mini Computer Mainboard from wholesalers

    Buy cheap ITX Industrial Embedded Motherboard For IoT N100 CPU 12x12cm Mini Computer Mainboard from wholesalers
    • Buy cheap ITX Industrial Embedded Motherboard For IoT N100 CPU 12x12cm Mini Computer Mainboard from wholesalers
    • Buy cheap ITX Industrial Embedded Motherboard For IoT N100 CPU 12x12cm Mini Computer Mainboard from wholesalers
    • Buy cheap ITX Industrial Embedded Motherboard For IoT N100 CPU 12x12cm Mini Computer Mainboard from wholesalers
    • Buy cheap ITX Industrial Embedded Motherboard For IoT N100 CPU 12x12cm Mini Computer Mainboard from wholesalers

    ITX Industrial Embedded Motherboard For IoT N100 CPU 12x12cm Mini Computer Mainboard

    Ask Lasest Price
    Model Number : AIO-N100-V1.1
    Payment Terms : T/T
    Supply Ability : 10000pcs/Day
    Delivery Time : 5-8 working Days
    • Product Details
    • Company Profile

    ITX Industrial Embedded Motherboard For IoT N100 CPU 12x12cm Mini Computer Mainboard

    Industrial Motherboard for IoT N100 Motherboard ITX Mainboard AX2-N8U2L-V1.1 N100 CPU embedded 12*12cm mini computer case mainboard

    CWWK N100 motherboard

    N100 Motherboard ITX Mainboard AX2-N8U2L-V1.1 Advantages:

    Inte® 12th Generation Alder Lake-N low-power processor
    Standard 17x17 Mini-ITX board type DC12-19v wide voltage power supply

    l Based on IntelAlder Lake-NPlatform design

    l Support n series Intel processors

    l Support single-channel SO-DIMM DDR4 memory

    l 1* M.2 2230 slot (supporting M.2 WIFI)

    l 1 M.2 2280 slot (supporting NGFF/NVME automatic switching)

    l The rear IO provides 1xUSB3.0, 4xUSB2.0 and 1x Type-C.

    l 2 x HDMI,1 x DP

    l 2 x gigabit network card, supporting PXE and network wake-up function

    l Support DC12V~19V power input

    Windows S10, Windows S11 and Linux are supported


    CWWK N100 motherboard

    N100 Motherboard ITX Mainboard AX2-N8U2L-V1.1 Features

    Motherboard chip

    IntelAlder Lake-N

    CPU

    Intel n-series CPU, TDP: 6W

    Optional: N100; N200 N300 N305 and so on

    memory

    1*DDR4 SO-DIMM, 3200MHz/32G, single slot supports 32G at most.

    Cunzhu

    1*M.2 slot (NGFF/NVME automatic switching)

    Display interface

    2*HDMI 1.4 interface, 1*DP interface (supporting 3840*2160 60Hz resolution)

    network

    2*RJ45 interface

    Network card chip

    Realtek RTL8111H Gigabit NIC Chip

    WIFI

    1*M.2 2230 slot (M.2 WIFI)

    audio frequency

    1*Line_out; 1*MIC_In

    Audio chip

    Realtek ALC897 HD Audio Chip

    Usb interface

    IO interface: 1 * USB 3.0; 4*USB2.0 1 x Type-c

    Functional pin

    1*FPANEL panel pin; 1*4Pin CPU fan

    Power input

    1*DC socket; 1*4Pin built-in power socket (DC12V~19V power input)

    product size

    Thin Mini-ITX motherboard specification, 120 x 120 mm x 8L

    Working temperature

    -10~60

    Working humidity requirements

    10%~90% without condensation

    Storage temperature

    -40~70

    power consumption

    Standby power consumption: 5.7W Full load power consumption: 28.5W

    other

    1 JCMOS button; 1*3Pin JAT jump cap; 2*5Pin diagnostic card interface; 1* Switch button; 1* Power LED, hard disk LED


    AX2-N8U2L-V1.1 1.jpgAX2-N8U2L-V1.1 2.jpgAX2-N8U2L-V1.1 3.jpg22222.jpgmotherboard factory 33.jpg


    FAQ

    Q1. Can I get a sample for testing?
    Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.


    Q2. What's your MOQ?
    Re: MOQ 1
    pcs.

    Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
    Re: Yes we can. The main advantage of our factory is customization
    ,The charges for OEM service depends on the different level of customize. the process of customization is
    following:
    1) provide your specific requirement.
    2) our design engineer draw the design draft.
    3) you confirm the design draft.
    4) we start produce it.

    Q4. Can you print my logo on
    motherboard ?
    Re: Yes, we can silkscreen logo on
    heatsink, bios as open computer show your Logo
    MOQ is 300 pcs.if you need with PCB logo, then need 1K pcs for each model.

    Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?
    Re: Yes it can be working in 24h*7 days, working temperature range
    -10~60, storage temperature range-40~70


    Q7. What is the lead time of your products?
    Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on
    model and order qty) ,we will test the model
    to insure the quality before shipping.

    Q8. What payment method do you accept?
    Re: We accept T/T,Paypal, Western Union

    Q9. How will you delivery the device to me?
    Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.


    Q10.What's the warranty?
    Re:
    1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
    repair cost (except change new accessories)
