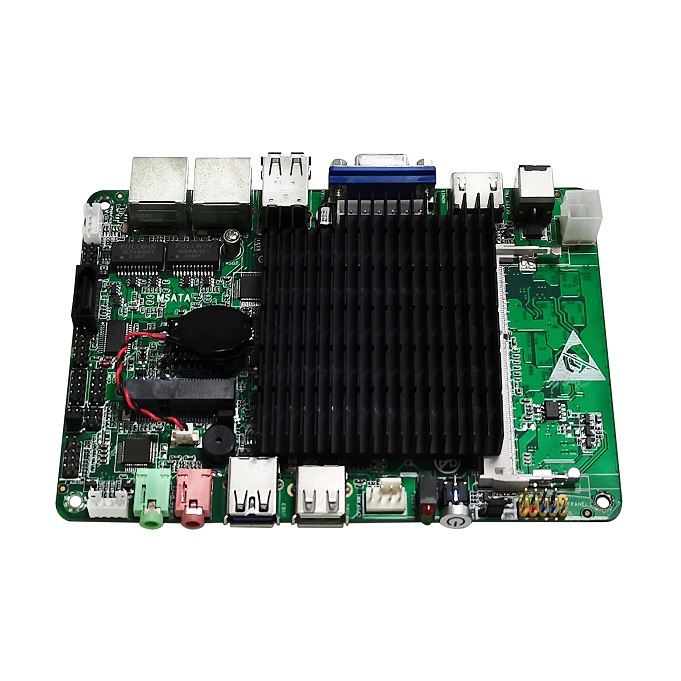

    MINI ITX Motherboard 3.5 Inch Intel J1900 2COM Mini Embedded PC Mainboard

    Ask Lasest Price
    Model Number : GW3-N19D-V1.0
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    MINI ITX Motherboard 3.5 Inch Intel J1900 2COM Mini Embedded PC Mainboard

    Cheapest 3.5 Motherboard MINI ITX Inch Intel J1900 2COM For Mini PC and Motherboard Pc Embedded Main Board GW3-N19D-V1.0


    Features (product features)

    ▲ Support Intel Bay Trail-M/D series processors.

    ▲ Support a single DDR3L memory, and support 8GB 1333MHz SDRAM at most.

    ▲ Support 1 SATA interface and 1 MSATA interface.

    ▲ Support 1 USB3.0 interface and 5 USB2.0 interfaces.

    ▲ Support ALC887 sound card chip.

    ▲ Support two serial ports, one of which supports RS232/422/485 mode.

    ▲ Support Mini PCIe expansion slot (including 8pin SIM card slot)

    ▲ Support two RJ45 Gigabit network card interfaces.

    ▲ Support VGA/HDMI display interface, and support synchronous dual display.


    Model Name

    GW3-N19D VER:1.1

    processor

    Intel Bay Trail-M/D series processors

    chip set

    J1900

    internal storage

    technology

    Single channel DDR3L 1333MHz

    maximum capacity

    8GB

    Memory slot

    1 x 204Pin DDR3L SO-DIMM(Non-ECC)

    Post I/O

    DC interface

    1 standard 2.5mm DC12V power socket

    switching push-button

    1 PowerButton switch button

    Indicator light

    1 power indicator and 1 hard disk indicator

    HDMI

    Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60Hz.

    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

    Ethernet

    1 or 2 gigabit network cards (LAN1 and USB2.0 are laid together), RTL8111F network card chip.

    Audio

    1 (Mic-in, Line-out)

    USB port

    1 USB 3.0; 3 USB 2.0

    Internal connector

    USB port

    2 (one FUSB can switch out two USB2.0 interfaces);

    serial port

    2 (including COM1 supporting RS232 mode and COM2 supporting RS232/422/485 mode)

    Audio

    1 2*5Pin pin (Mic-in, Line-out)

    power amplifier

    1*4Pin 2.0mm small white socket, supporting 2 speakers with 5W2.

    JVGA

    1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

    Mini-PCIe

    1 Mini PCIe slot, supporting WIFI,4G module.

    MSATA

    1 MSATA interface supporting SATA 2.0 speed.

    serial ata

    1 1*7PIN SATA interface, supporting SATA 2.0 speed.

    GPIO interface

    8-way bidirectional 5V

    power source

    1 power socket 2x2pin atxddc12v _ in

    Watchdog

    output

    system reset

    space

    Programmable for 1 ~ 255 seconds

    power consumption

    Maximum power

    Standby power consumption: 6W Full load power consumption: 16.8W

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-40 ~ 70℃ Humidity: 5%~95%

    Temperature: -40~85℃ Humidity: 5%~95%

    Physical size

    measure

    145 mm x 102 mm
