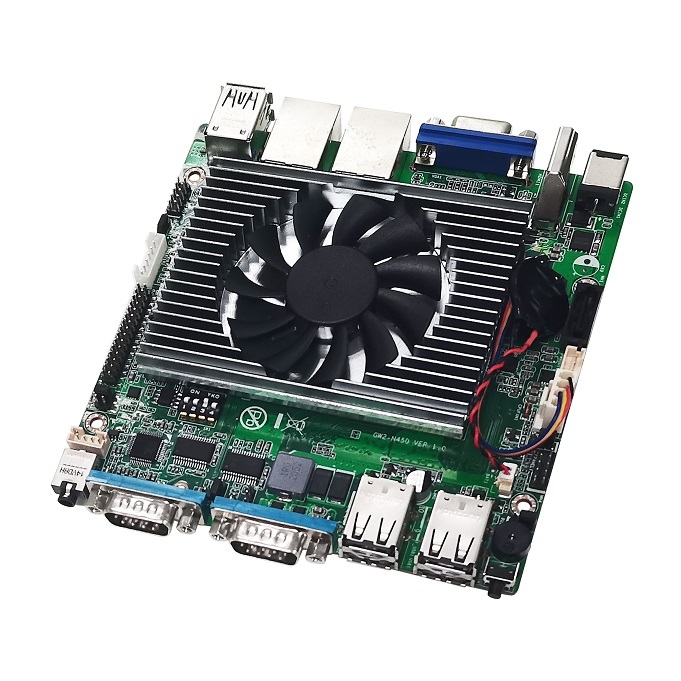

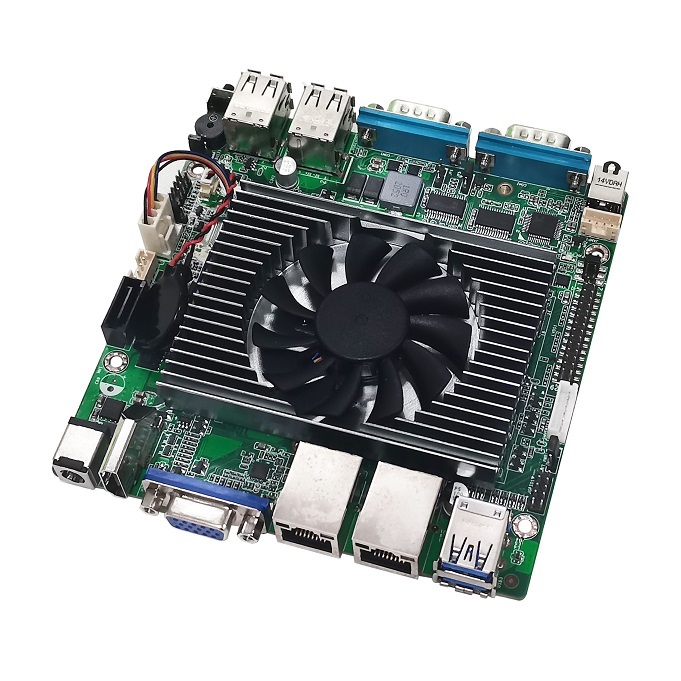

    12*12cm 4th 5th GEN Nano ITX Motherboard I5-4300U For Industrial Computer

    Ask Lasest Price
    Model Number : GW2-N45D-V1.0
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    12*12cm 4th 5th GEN Nano ITX Motherboard I5-4300U For Industrial Computer


    Nano ITX Mainboard 12*12 cm 4th 5th GEN Motherboard for Box PC for Industrial Computer for Mini PC GW2-N45D-V1.0

    Features (product features)

    Support Intel Haswell-U series processors.

    Support 1 SATA interface, 2 USB3.0 and 4 USB2.0.

    Support a single 204 pin SO-DIMM to 8GB DDR3L/1600MHz.

    Supports 5.1-channel ALC887 chip.

    Support 2 serial ports and 1 GPIO interface.

    High-speed USB3.0 interface transmission speed

    Mini PCIE expansion slot *2

    RJ45 Gigabit NIC interface *2

    Support VGA/HDMI/LVDS display interface, and support synchronous three displays.

    Support Windows7 and Windows10 32/64 bit operating systems.

    Support single power supply 12V DC input


    Model Name

    GW2-N45D VER:1.1

    processor

    Intel Haswell-U series processors.

    CPU

    Example: I5-4300U, I5-5200U, I5-5300U, I5-5287U.

    internal storage

    technology

    Single channel DDR3L 1600MHz

    maximum capacity

    8GB

    Memory slot

    1*204Pin DDR3 SO-DIMM(Non-ECC)

    Post I/O

    DC interface

    1 standard 2.5mm DC power socket

    HDMI

    Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60Hz.

    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

    Ethernet

    Two gigabit network cards, Realtek RTL8111F network card chip.

    Audio

    1 line-out (MIC)

    USB port

    2 USB 3.0, 4 USB 2.0

    serial port

    2 (both serial ports support RS232 mode, and COM2 supports RS485)

    Internal connector

    power amplifier

    1*4Pin 2.0mm white socket, which can support up to two 5W2 speakers.

    LVDS interface

    Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.

    Mini-PCIe

    1 full-length card Mini PCIe slot, supporting WIFI, 4G module.

    MSATA

    1 Mini PCIe slot for full-length card, supporting SSD hard disk.

    serial ata

    Provide a 7Pin interface and support SATA3.0.

    GPIO

    8-way bidirectional 5V

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 7.2W Full load power consumption: 55.2W

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-10 ~ 60 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    Physical size

    measure

    120 mm x 120 mm
