    1LAN 2COM 3317U Industrial Embedded Motherboard Mini Itx Motherboard

    Ask Lasest Price
    Model Number : GW7-T23D-V1.1 1LAN 2COM 3317U
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

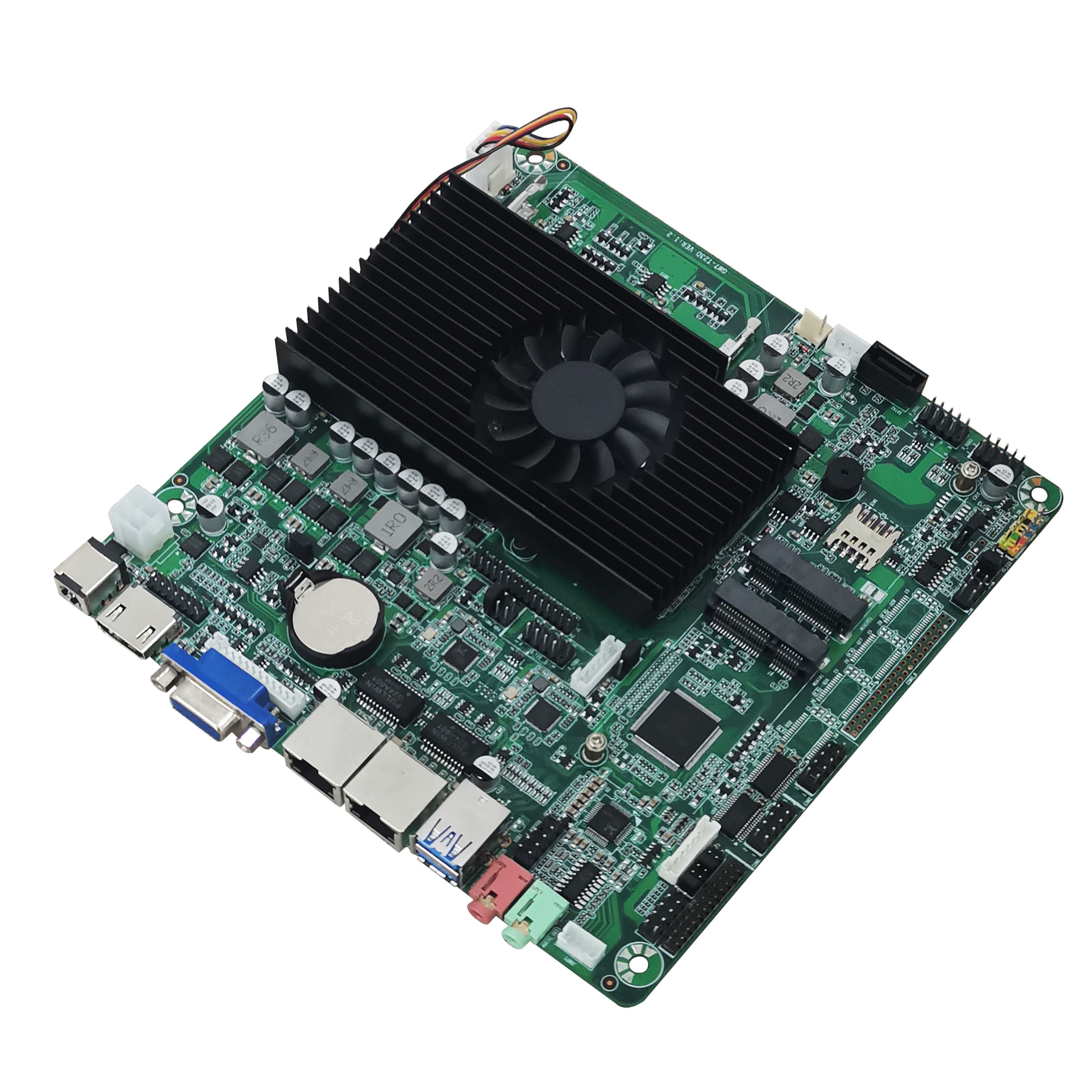

    1LAN 2COM 3317U Industrial Embedded Motherboard Mini Itx Motherboard


    Features (product features)

    Support Intel Ivy Bridge series processors.

    Support DDR3L memory, up to 8GB 1333MHz SDRAM.

    Support stereo dual-channel ALC887 chip with onboard power amplifier.

    Support 1 serial port and 1 PS2 pin interface.

    Support 2 USB3.0 and 6 USB2.0.

    support MSATA

    Support Mini PCIE expansion slot (including 8pin SIM card slot)

    Support one 7Pin SATA interface.

    Support two RJ45 Gigabit network card interfaces.

    Support VGA/HDMI/LVDS display interface, and support synchronous dual display.

    Support single power supply 12V input.

    Support Windows7 and Windows10 32/64 bit operating systems.


    Model Name

    GW7-T23D VER:1.2

    processor

    Intel Ivy Bridge series processors (such as I3-3217U, I5-3337U)

    Southbridge

    HM77

    memory

    technology

    Single channel DDR3L 1333MHz

    maximum capacity

    8GB

    Memory slot

    1 x 204Pin DDR3L SO-DIMM(Non-ECC)

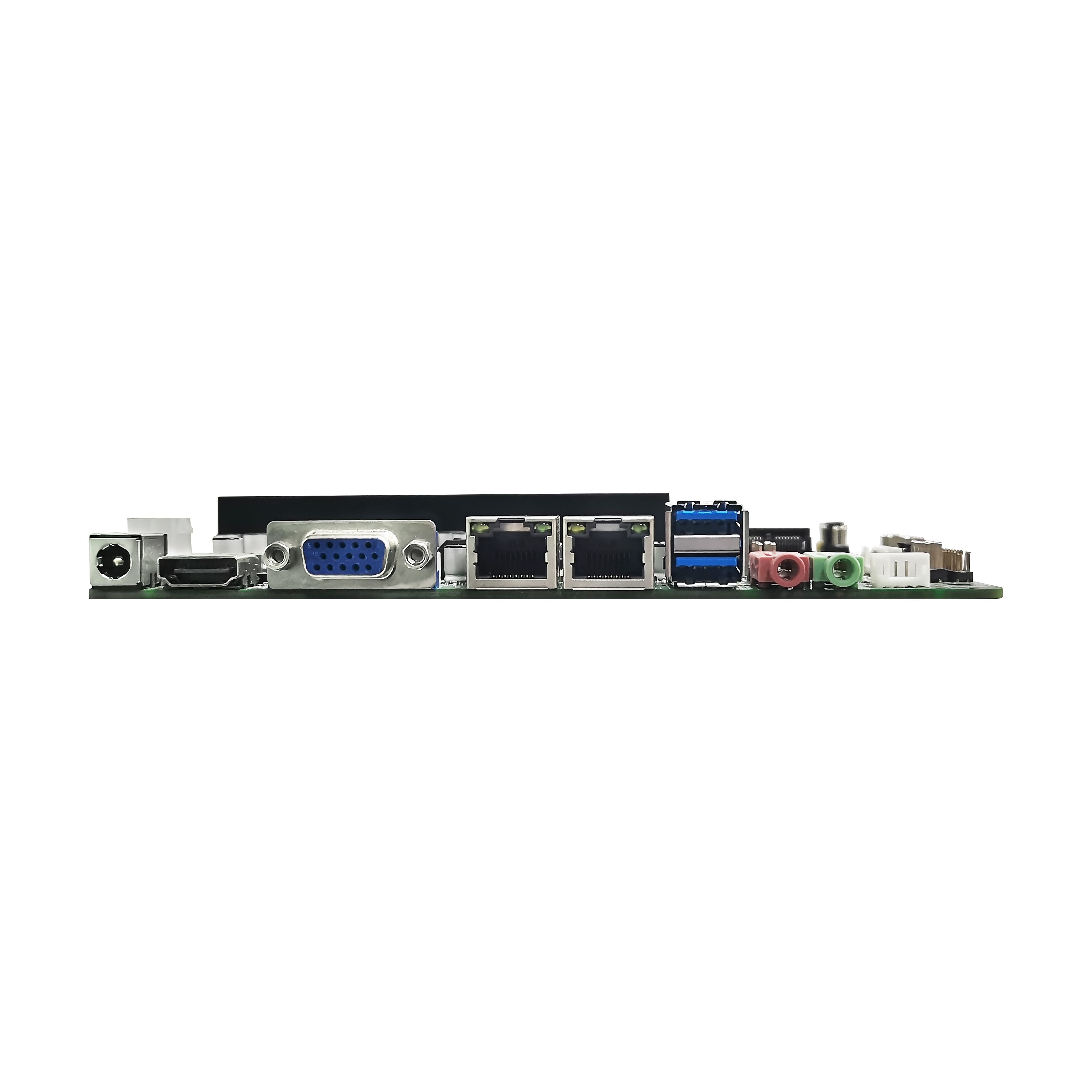

    Post I/O

    power source

    1 standard 2.5mm DC power socket

    HDMI

    Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60Hz.

    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

    Ethernet

    1 or 2 Gigabit network cards (LAN2 and USB2.0 are laid together), RTL 8111f network card chip.

    USB port

    2 USB3.0 interfaces

    Audio

    1 (Mic-in, Line-out)

    Internal connector

    USB port

    6 USB2.0 interfaces (one FUSB can switch out two USB2.0 interfaces)

    PS2 interface

    1*7Pin 2.0mm white socket, which can connect PS2 keyboard and PS2 mouse.

    serial port

    One serial port only supports RS232 mode.

    JHDMI interface

    2*8Pin pin, supporting the maximum resolution of 2560*1600@60H(HDMI and JHDMI can only be selected).

    JVGA

    1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

    LVDS interface

    Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.

    Audio

    1 2*5Pin pin (Mic-in, Line-out)

    power amplifier

    1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2.

    Mini-PCIe

    1 Mini PCIe slot of full-length card (supporting WIFI and 4G modules)

    MSATA

    Support SSD hard disk

    serial ata

    1 7Pin SATA interface, supporting SATA 2.0

    GPIO

    8-way bidirectional 3.3V

    PWR interface

    1 standard 2x2 Pin power socket

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 13.2W Full load power consumption: 49.2W

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-10 ~ 60 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    Physical size

    measure

    170 mm x 170 mm
