    Industrial Intel 11th Gen Tiger Lake U I3 I5 I7 Mini Itx Mainboard 6 Com Onboard 2 DDR4 64GB LVDS

    Ask Lasest Price
    Model Number : AIO-T11GD-V1.1 I5-1135G7/1145G7
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

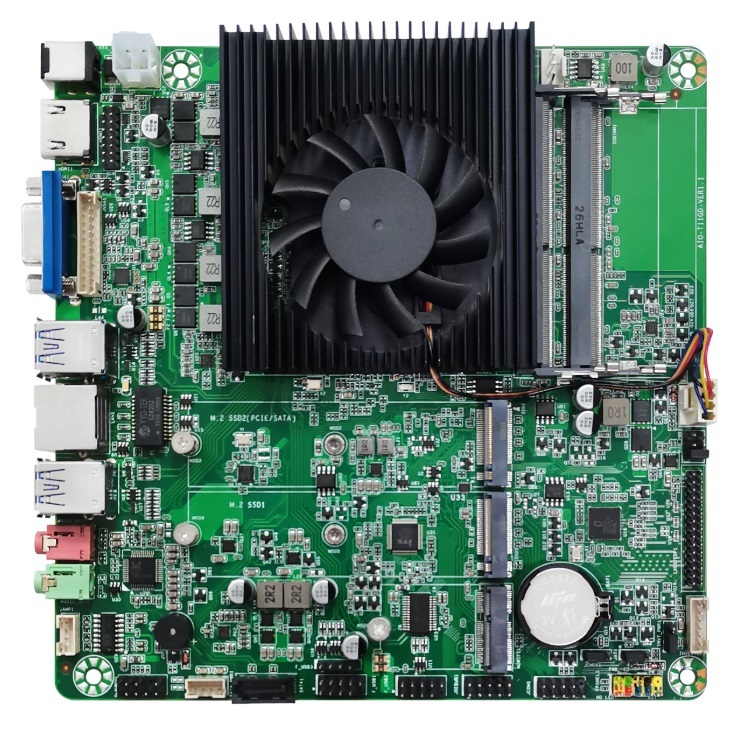

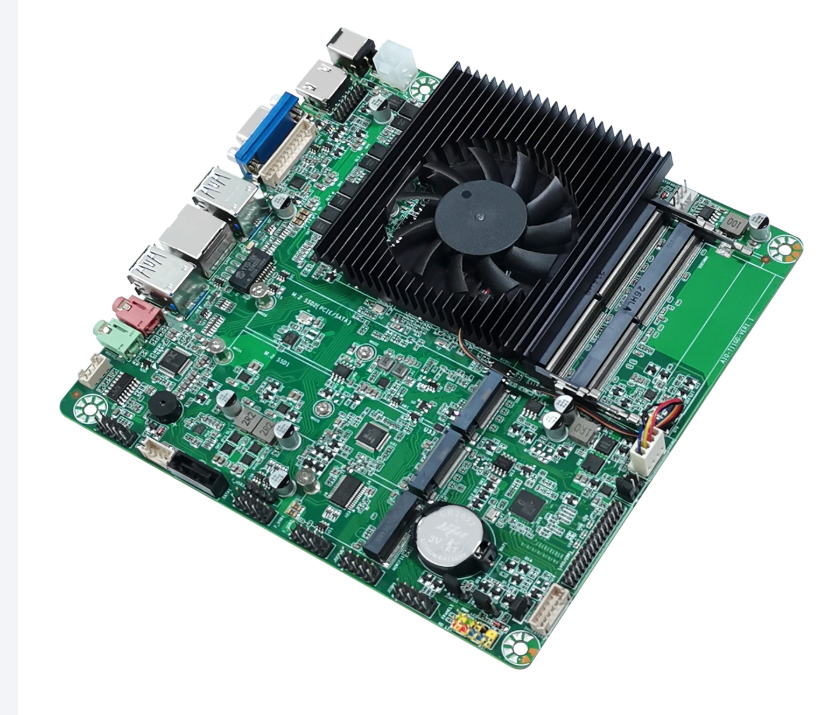

    Industrial Intel 11th Gen Tiger Lake U I3 I5 I7 Mini Itx Mainboard 6 Com Onboard 2 DDR4 64GB LVDS

    Industrial Control Board Intel 11th Generation Tiger Lake-U I3 I5 I7 Mini-itx Mainboard 6Com Onboard 2 DDR4 64GB LVDS Industrial Nano Itx Motherboards


    Features (product features)

    Support IntelTiger Lake-U series processor

    Support DDR4 memory, up to 32 GB 32GB 3200MHz SDRAM.

    Supports 5.1-channel ALC897 chip with onboard power amplifier.

    Support one serial port and only RS232 mode.

    Support 4 USB3.0 and 4 USB2.0.

    Support two NVME M.2

    Support one 7Pin SATA interface.

    Support one RJ45 Gigabit NIC interface.

    Support VGA/HDMI/LVDS(EDP) display interface, and support synchronous three displays.

    Support DC power supply 12V~19V input.

    Support Windows10 32/64 bit operating system and Linux system.


    Model Name

    AIO-T11GD VER1.1

    processor

    IntelTiger Lake-U Serial

    CPU

    Support I3, I5, I7 series CPU.

    memory

    technology

    Dual-channel DDR4 3200MHz

    maximum capacity

    32GB

    Memory slot

    2*260Pin DDR4 SO-DIMM(Non-ECC)

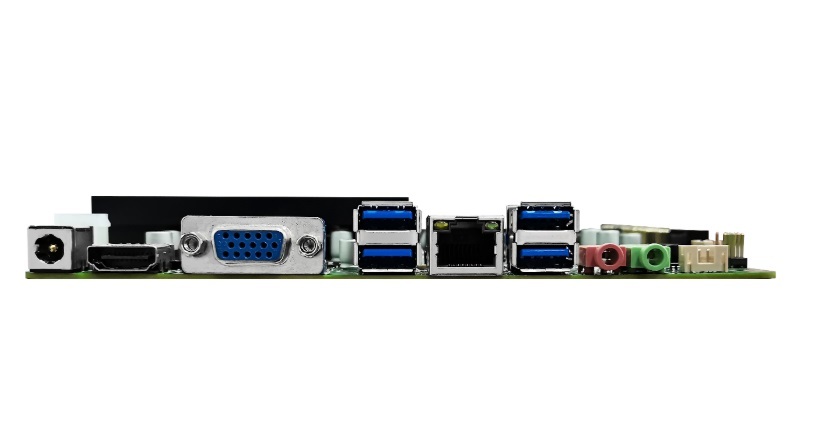

    Post I/O

    DC interface

    1 standard 2.5mm DC power socket

    HDMI

    Standard D socket, supporting HDMI1.2(HDMI and JHDMI can only be selected)

    VGA

    Standard DB15 socket (VGA interface and JVGA interface can only be selected)

    Ethernet

    1 Gigabit network card, Realtek network card chip

    Audio

    1 (Line-out, Mic-in)

    USB port

    4 USB 3.0

    Internal connector

    FAudio

    1 2*5Pin pin (Mic-in, Line-out)

    power amplifier

    1*4Pin 2.0mm white socket, which can support up to two 5W2 speakers.

    serial ata

    1 7Pin SATA interface, 1 4Pin power supply interface, supporting SATA 3.0 speed.

    PWR interface

    1 standard 2x2Pin power socket

    USB port

    4 (one FUSB can transfer 2 USB2.0 interfaces)

    serial port

    Support 1 serial port, only RS232 mode.

    JVGA

    Supports 1*12Pin pins (VGA and JVGA can only be selected)

    JHDMI interface

    Supports 2*8Pin pins (HDMI and JHDMI can only be selected).

    LVDS interface

    Support single (dual) channel 18(24) bits)

    FAN

    Supports 1*4PinCPU_FAN and 1*4PinSYS_FAN.

    Mini-PCIe

    1 full-length card Mini PCIe slot, supporting M.2 WIFI.

    M.2 interface

    2 M.2 slots, only M.2 hard disk supporting NVME protocol.

    M.2sd1: support nvme m.2sd2: support NGFF/NVME.

    power consumption

    Maximum power

    Standby power consumption: 8.17W Full load power consumption: 58.52W

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-10 ~ 60 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    DC power supply

    adapter

    DC12V~19V power input

    Physical size

    measure

    170 mm x 170 mm
