    1 LAN 6 COM I3-7167U Industrial Mini Itx Embedded Motherboard TMITX-IU67S-WB-V1.02

    Ask Lasest Price
    Model Number : TMITX-IU67S-WB-V1.0
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    1 LAN 6 COM I3-7167U Industrial Mini Itx Embedded Motherboard TMITX-IU67S-WB-V1.02


    Features (product features)

    Support Intel Skylake/Kabylake-U series processors.

    Support 1 SATA interface, 2 USB3.0 and 5 USB2.0.

    Support a single 206 pin SO-DIMM to 8GB DDR3L/1600MHz.

    Supports 5.1-channel ALC887 chip.

    Support 6 serial ports and 1 parallel port.

    High-speed USB3.0 interface transmission speed

    Mini PCIE expansion slot *2

    RJ45 Gigabit NIC interface

    Support Windows7 and Windows10 32/64 bit operating systems.

    Support VGA/HDMI/LVDS display interface, and support synchronous three displays.

    Support single power supply 12V DC input, 6-layer PCB board.


    Model Name

    TMITX-IU67S-WB VER:1.01

    processor

    Intel Skylake-U and Kabylake-U series processors.

    cpu

    I5-6360U

    memory

    technology

    Single channel DDR3L 1600MHz

    maximum capacity

    8GB

    Memory slot

    1*204Pin DDR3 SO-DIMM(Non-ECC)

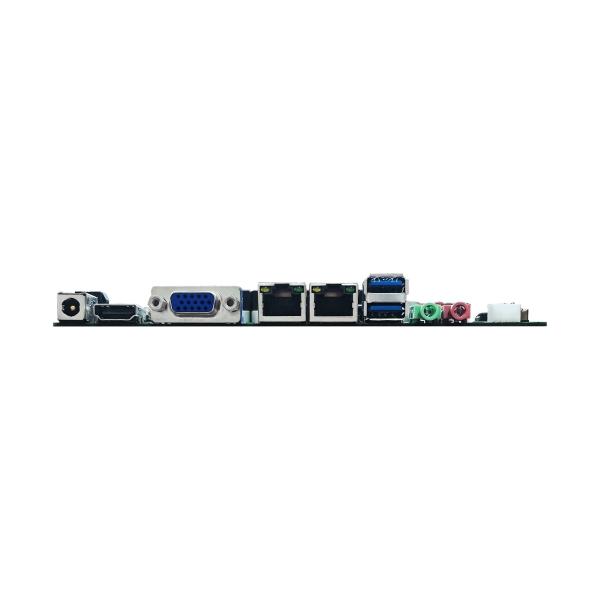

    Post I/O

    DC interface

    1 standard 2.5mm DC power socket; 1 2x2 ATX power socket

    HDMI

    Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60Hz.

    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

    Ethernet

    1 or 2 gigabit network cards (LAN1 and USB2.0 are laid together), RTL8111F network card chip.

    Audio

    1 (Line-out, Mic-in)

    USB port

    2 USB 3.0

    Internal connector

    USB port

    5 (one FUSB can transfer out two USB2.0 interfaces);

    serial port

    6 (serial ports all support RS232 mode, among which COM1 and COM2 support RS485 mode)

    parallel port

    1 2*13Pin pin

    Audio

    1 2*5Pin pin (Mic-in, Line-out)

    power amplifier

    1*4Pin 2.0mm white socket, which can support up to two 5W2 speakers.

    JHDMI interface

    2*8Pin pin, supporting the maximum resolution of 2560*1600@60H(HDMI and JHDMI can only be selected).

    JVGA

    1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

    LVDS interface

    Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz(LVDS and EDP can only be selected).

    EDP interface

    The maximum resolution can reach 3840*2160@60Hz(LVDS and EDP can only be selected).

    Mini-PCIe

    1 full-length card MiniPCIe slot, supporting WIFI, 4G

    MSATA

    1 full-length card MiniPCIe slot, supporting SSD hard disk.

    serial ata

    1 7PIN SATA interface, supporting SATA 3.0

    PWR interface

    1 standard 2x2PIN power socket, also can support 2PIN Phoenix terminal.

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 12W Full load power consumption: 66W

    environment

    temperature range

    working environment

    Storage environment

    Temperature: 10 ~ 60 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    Physical size

    measure

    170 mm x 170 mm
