    Mini Itx Industrial Embedded Motherboard Dual Lan 6 COM With LVDS I5-6300U

    Ask Lasest Price
    Model Number : GW7-T67D3-V1.2
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

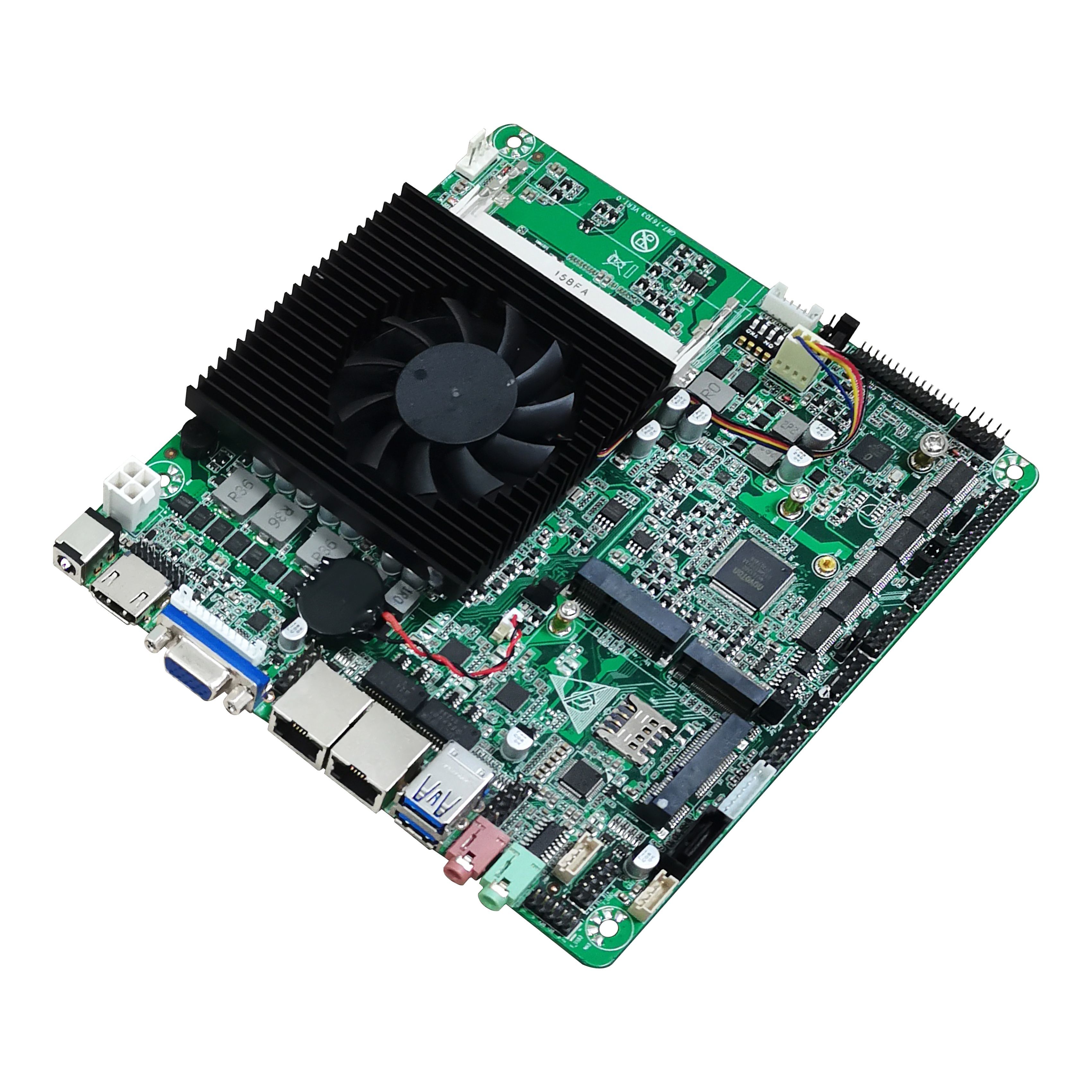

    Mini Itx Industrial Embedded Motherboard Dual Lan 6 COM With LVDS I5-6300U

    mini itx industrial Motherboard GW7-T67D3-V1.1 Dual lan 6 COM with LVDS I5-6300U


    Features

    Support Intel Skylake-U/Kabylake series processors.

    Support DDR3L dual-channel memory, up to 32GB 1600MHz SDRAM.

    Support stereo dual-channel ALC887 chip with onboard power amplifier.

    Support 6 serial ports

    Support 2 USB3.0 and 6 USB2.0.

    Support Mini PCIE expansion slot (including 6pin SIM card slot)

    Support one 7Pin SATA interface, one MSATA interface and one M.2 hard disk.

    Support two RJ45 Gigabit network card interfaces.

    Support VGA/HDMI/LVDS(EDP) display interface, and support synchronous three displays.

    Support DC12V power input.

    Support Windows10 32/64 bit operating system an


    Model Name

    GW7-T67D3 VER:1.1

    processor

    Intel Skylake-U/Kabylake series processors

    CPU

    Support Intel 6th/7th generation Celeron, Pentium, i3, i5 and i7 CPU, such as I5-6360U and I5-7200U.

    memory

    technology

    Dual-channel DDR3L 1600MHz

    capacity

    The maximum capacity supports 32GB, and a single slot supports up to 16GB of memory.

    Memory slot

    2 x 204Pin DDR3L SO-DIMM(Non-ECC)

    Post I/O

    power source

    1 standard 2.5mm DC12V power socket

    HDMI

    Standard D socket, supporting HDMI1.4, maximum resolution: 4096*2304@24Hz (HDMI and JHDMI can only be selected).

    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz (VGA interface and JVGA interface can only be selected).

    Ethernet

    1 or 2 gigabit network cards (LAN2 and USB2.0 are laid together), RTL8111K network card chip.

    USB port

    2 USB3.0 interfaces

    Audio

    1 (Line-out, Mic-in)

    Internal connector

    USB port

    6 USB2.0 interfaces (one FUSB can switch out 2 USB2.0 interfaces)

    LVDS interface

    Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz(LVDS and EDP can only be selected).

    EDP interface

    The maximum resolution can reach 4096x2304@60Hz(LVDS and EDP can only be selected).

    JHDMI interface

    2*8Pin pin, supporting the maximum resolution of 4096x2304@24Hz(HDMI and JHDMI can only be selected).

    JVGA

    1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

    M.2 interface

    1 full-length M.2 M KEY slot, M.2 hard disk supporting SATA protocol and NVME protocol.

    MSATA interface

    1 MSATA interface supporting SATA 3.0 speed.

    serial ata

    1 7Pin SATA interface supporting SATA 3.0 speed.

    FAudio

    1 2*5Pin pin (Mic-in, Line-out)

    power amplifier

    1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2.

    Mini-PCIe

    1 Mini PCIe slot of full-length card (supporting WIFI and 4G)

    PS/2 interface

    1*7Pin 2.0mm white socket, which can connect PS/2 keyboard and PS/2 mouse.

    serial port

    6 (of which COM1/4/5/6 supports RS232 mode, COM2 supports RS232/RS485/RS422 mode and COM3 supports RS232/RS485 mode).

    GPIO

    8-way bidirectional 5V

    PWR interface

    1 standard 2x2PIN DC12V power socket

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 12.0W Full load power consumption: 46.8W w.

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-40 ~ 70 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    Physical size

    measure

    170 mm x 170 mm
