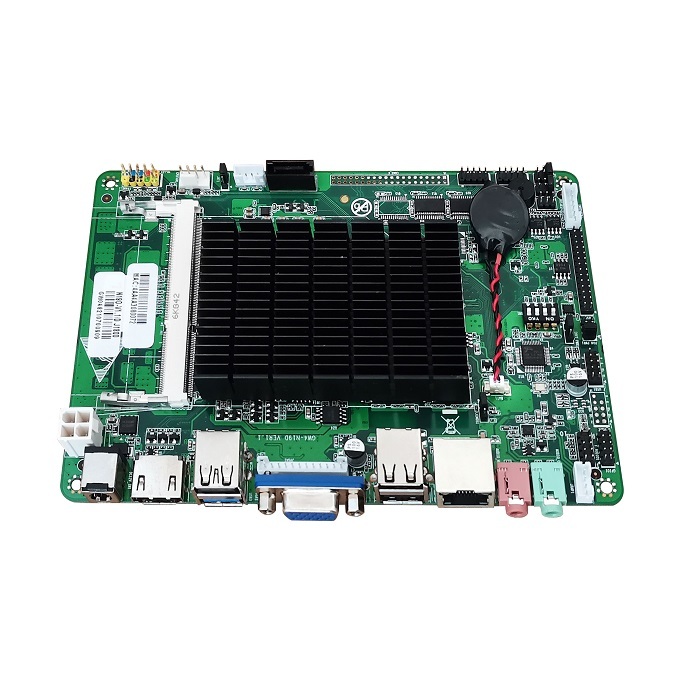

    1LAN 2COM Mini Itx Industrial Motherboard J1800 GW4-N19D-V1.1

    Ask Lasest Price
    Model Number : GW4-N19D-V1.1 J1800 1LAN 2COM
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    1LAN 2COM Mini Itx Industrial Motherboard J1800 GW4-N19D-V1.1

    Features (product features)

    Support Intel Bay Trail-M/D series processors.

    Support DDR3L memory, up to 8GB 1333MHz SDRAM.

    Support stereo dual-channel ALC887 chip with onboard power amplifier.

    Support 6 serial ports

    Support 1 USB3.0 and 5 USB2.0.

    support MSATA

    Support Mini PCIE expansion slot (including 8pin SIM card slot)

    Support one 7Pin SATA interface.

    Support two RJ45 Gigabit network card interfaces.

    Support VGA/HDMI/LVDS display interface, and support synchronous dual display.

    Support single power supply 12V input.

    Support Windows7 and Windows10 32/64 bit operating systems.


    Model Name

    GW4-N19D VER:1.1

    processor

    Intel Bay Trail-M/D series processors

    CPU

    J1900

    memory

    technology

    Single channel DDR3L 1333MHz

    maximum capacity

    8GB

    Memory slot

    1 x 204Pin DDR3L SO-DIMM(Non-ECC)

    Post I/O

    power source

    1 standard 2.5mm DC power socket

    HDMI

    Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60Hz.

    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

    Ethernet

    1 or 2 gigabit network cards (LAN1 and USB2.0 are laid together), RTL8111H network card chip.

    USB port

    2 USB interfaces (USB2.0 interface above USB3.0 cradle and USB3.0 interface below cradle)

    Audio

    2 (Mic-in, Line-out)

    Internal connector

    USB port

    4 USB2.0 interfaces (one FUSB can switch out two USB2.0 interfaces)

    serial port

    6 (serial ports all support RS232 mode, among which COM2 supports RS422 and RS485 mode)

    JVGA

    1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

    LVDS interface

    Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.

    Audio

    1 2*5Pin pin (Mic-in, Line-out)

    power amplifier

    1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2.

    Mini-PCIe

    1 Mini PCIe slot of full-length card (supporting WIFI and 4G)

    MSATA

    Support SSD hard disk

    serial ata

    1 7Pin SATA interface, supporting SATA 2.0

    GPIO

    8-way bidirectional 5V

    PWR interface

    1 standard 2x2PIN power socket

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 8.4W Full load power consumption: 30W

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-10 ~ 60 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    Physical size

    measure

    165 mm x 115 mm
