    Intel 6th 7th Core I3 I5 I7 Industrial Embedded Motherboard IoT (IIoT) I5-7200U LVDS EDP

    Ask Lasest Price
    Model Number : GW3-WB67D-V1.0
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    Intel 6th 7th Core I3 I5 I7 Industrial Embedded Motherboard IoT (IIoT) I5-7200U LVDS EDP


    Industrial Motherboard for Robotics 3.5 mini itx motherboard Industrial IoT (IIoT) I5-7200U LVDS EDP Intel 6th 7th Core I3 I5 I7 Dual Processor Embossed Industrial Mini Itx Motherboard

    Features (product features)

    Support Intel Skylake-U-R/Kabylake-U series processors.

    Support 1 SATA interface and 1 Mini SATA interface.

    Support single channel DDR4 memory, with a maximum support of 16GB 2133MHz.

    Support dual-channel ALC887 chip.

    Support 6 serial ports

    Support 2 USB3.0 and 4 USB2.0.

    Support Mini PCIE expansion slot.

    Support two RJ45 Gigabit network interfaces.

    Support VGA/HDMI/LVDS display interface, and support synchronous three displays.

    Support Windows10 32/64 bit operating system and Linux system.

    Support DC12V input.


    Model Name

    GW3-WB67D VER:1.0

    processor

    Intel Skylake-U-R /Kabylake-U series processors

    CPU

    For example: I5-6200U, I5-7200U, etc.

    memory

    technology

    Single channel DDR4 2133MHz

    maximum capacity

    16GB

    Memory slot

    1*260Pin DDR4 SO-DIMM(Non-ECC)

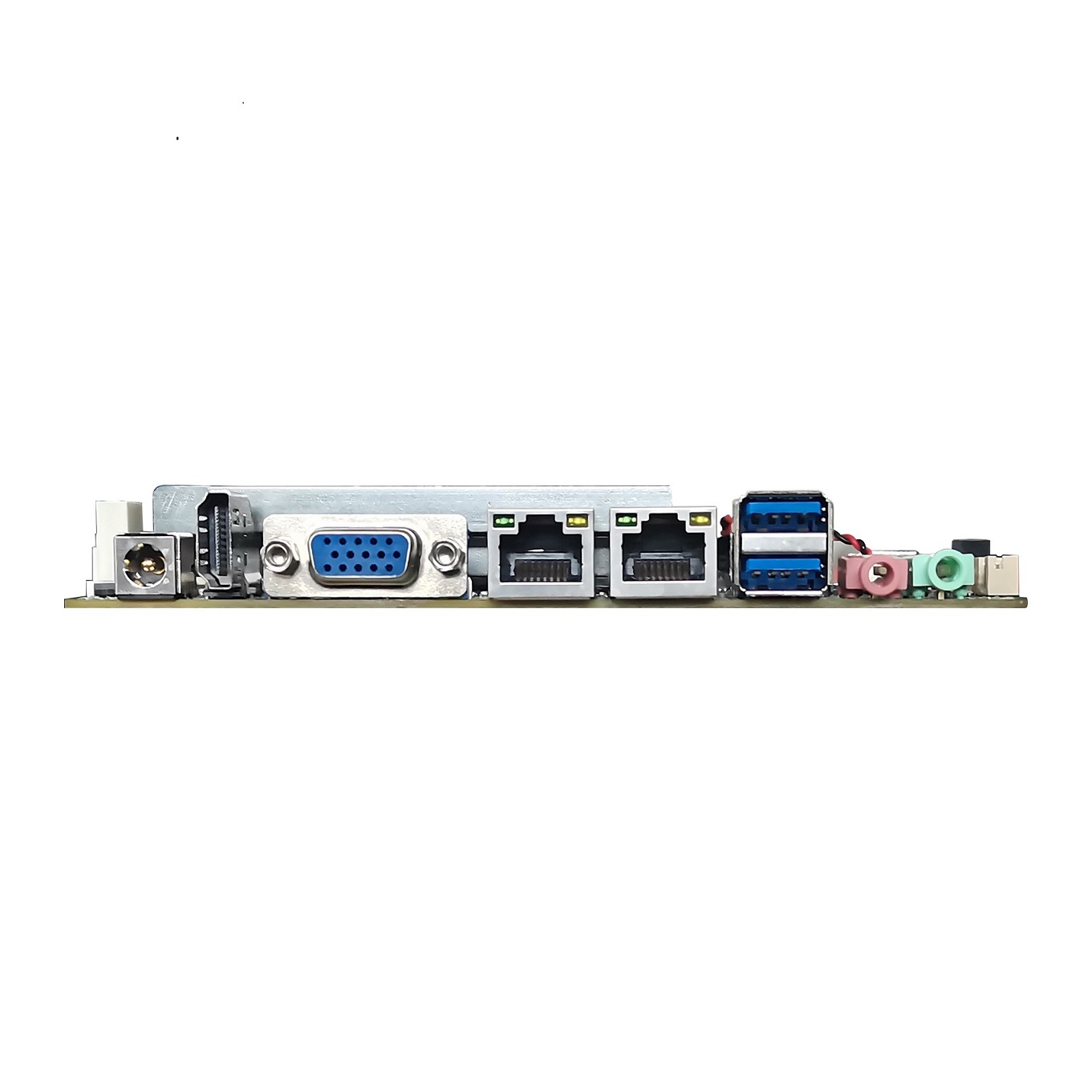

    Post I/O

    DC interface

    1 standard 2.5mm DC12V power socket

    HDMI

    Standard D socket, supporting HDMI1.4, and the maximum supporting resolution is 4096*2304@24Hz.

    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

    Ethernet

    2 Gigabit network cards, I211AT network card chip

    Audio

    1 line-out (MIC)

    USB port

    2 USB3.0 interfaces

    Internal connector

    USB port

    4 (one FUSB can switch out two USB2.0 interfaces)

    serial port

    6 (including COM2/COM3 supporting RS232/RS485 mode, COM1 and COM4-COM6 supporting RS232 mode)

    Audio

    1 2*5Pin pin (Mic-in, Line-out)

    power amplifier

    1*4Pin 2.0mm white socket, which can support up to two 5W2 speakers.

    LVDS interface

    Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.

    Mini-PCIe

    1 MiniPCIe slot, supporting WIFI, 4G module.

    MSATA

    1 MSATA interface supporting SATA 3.0 speed.

    serial ata

    1 7PIN SATA interface supporting SATA 3.0 speed.

    GPIO

    8-way bidirectional 5V

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 7.9W Full load power consumption: 57.8W

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-40 ~ 70 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    Physical size

    measure

    145 mm x 102 mm
