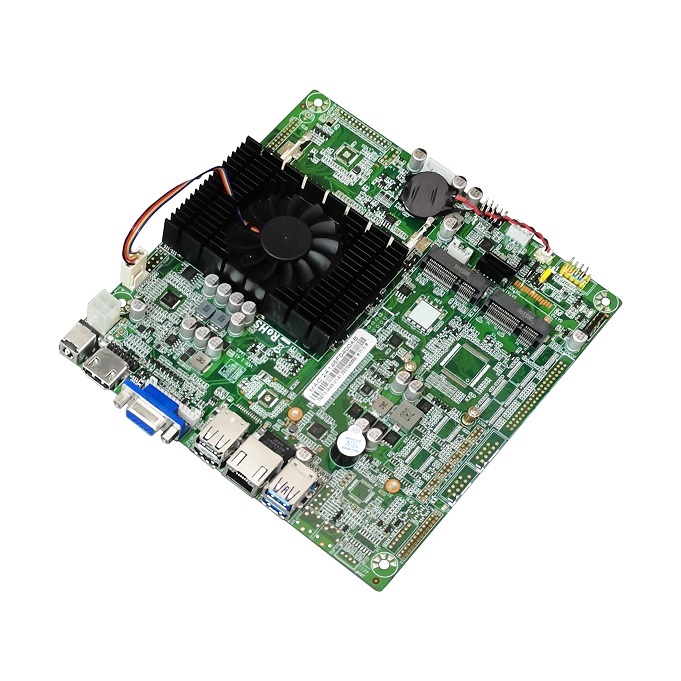

    TMITX-IA4S-V1.41 J1800 mini itx motherboard DDR3

    Ask Lasest Price
    Model Number : TMITX-IA4S-V1.41 J1800
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    TMITX-IA4S-V1.41 J1800 mini itx motherboard DDR3


    Features (product features)

    Support Intel Bay Trail-M/D series processors.

    Support DDR3L memory, up to 8GB 1333MHz SDRAM.

    Support stereo dual-channel ALC887 chip with onboard power amplifier.

    Support 6 serial ports, 1 parallel port and 1 PS2 pin interface.

    Support 1 USB3.0 and 8 USB2.0.

    support MSATA

    Support Mini PCIE expansion slot (including 8pin SIM card slot)

    Support one 7Pin SATA interface (7Pin and 22Pin interfaces are optional).

    Support two RJ45 Gigabit network card interfaces.

    Support VGA/HDMI/LVDS(EDP) display interface, and support synchronous dual display.

    Support single power supply 12V input.

    Support Windows7 and Windows10 32/6bit operating systems.


    Model Name

    TMITX-IA4S VER:1.41

    processor

    Intel Bay Trail-M/D series processors

    CPU

    J1900,J1800,N2940,N2930,N2840

    memory

    technology

    Single channel DDR3L 1333MHz

    maximum capacity

    8GB

    Memory slot

    1 x 204Pin DDR3L SO-DIMM(Non-ECC)

    Post I/O

    power source

    1 standard 2.5mm DC power socket; One 2x2 ATX power socket or 1x2 green terminal is optional.

    HDMI

    Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60Hz.

    VGA

    Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

    Ethernet

    1 or 2 gigabit network cards (LAN1 and USB2.0 are laid together), RTL8111F network card chip.

    USB port

    2 USB interfaces (USB2.0 interface above USB3.0 cradle and USB3.0 interface below cradle)

    Audio

    2 (Mic-in, Line-out)

    Internal connector

    USB port

    5 USB2.0 interfaces (one FUSB can switch out two USB2.0 interfaces)

    PS2 interface

    1*7Pin 2.0mm white socket, which can connect PS2 keyboard and PS2 mouse.

    serial port

    6 (serial ports all support RS232 mode, among which COM1 and COM2 support RS422 and RS485 mode).

    parallel port

    1 2*13Pin pin

    JHDMI interface

    2*8Pin pin, supporting the maximum resolution of 2560*1600@60H(HDMI and JHDMI can only be selected).

    JVGA

    1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

    LVDS interface

    Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.

    EDP interface

    Support 4 LANE eDP channel and the maximum resolution of 1920x1200@60HZ(EDP and LVDS can only be selected).

    Audio

    1 2*5Pin pin (Mic-in, Line-out)

    power amplifier

    1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2.

    Mini-PCIe

    1 Mini PCIe slot of full-length card (supporting WIFI and 4G)

    MSATA

    Support SSD hard disk

    serial ata

    1 7Pin SATA interface, supporting SATA 2.0(7Pin and 22Pin interfaces are optional),

    GPIO

    8-way bidirectional 3.3V

    PWR interface

    1 standard 2x2PIN power socket

    Watchdog

    output

    system reset

    space

    Programmable for 1-255 seconds

    power consumption

    Maximum power

    Standby power consumption: 8.4W Full load power consumption: 33.6W

    environment

    temperature range

    working environment

    Storage environment

    Temperature:-10 ~ 60 Humidity: 5%~95%

    Temperature: -40~85 Humidity: 5%~95%

    Physical size

    measure

    170 mm x 170 mm
