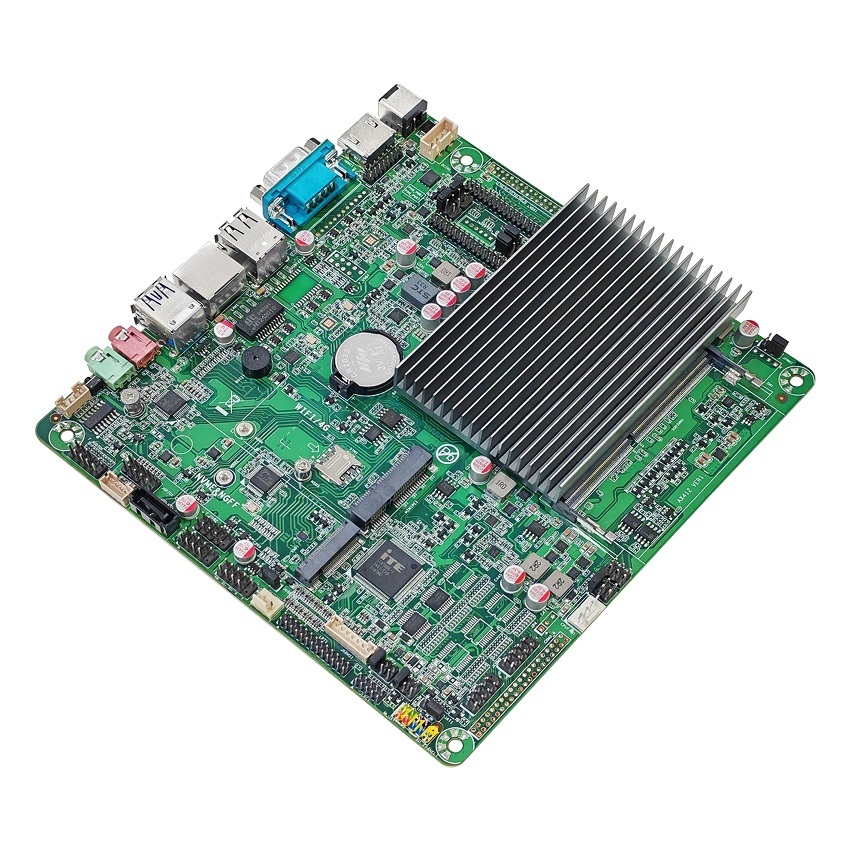

    AX412 Mini itx Mainboard for industrial application

    Ask Lasest Price
    Delivery Time : 5-8 working Days
    Supply Ability : 10000pcs/Day
    • Product Details
    • Company Profile

    AX412 Mini itx Mainboard for industrial application

    AX412 is an industrial computer motherboard based on Intel.Gemini LakeThe motherboard supports single channel memory, M.2(NGFF/NVME) and SATA mode SSD, different network access modes of RJ45 and WIFI/4G modules, and also supports rich peripheral interfaces, which is suitable for various types of industrial computers in the industry.


    l Based on IntelGemini LakePlatform design

    l Support Intel Celeron J4125 processor.

    l Support single-channel SO-DIMM DDR4 memory

    l 1 x Mini PCIe slot (supporting 4G module /WIFI module)

    l 1 x M.2 2280/2240 slot (supporting NGFF/NVME mode)

    l Post IO provides 2xUSB3.0.

    l Built-in pin can expand 8 USB2.0 interfaces.

    l 1 x HDMI-1.4A,1 x LVDS,2 x EDP

    l 6 x COM, 1 x PS2 keyboard mouse, 1 x LPT

    l 2 x gigabit network card, supporting PXE and network wake-up function

    Support the function of clear


    Model Name

    AX412 Mini itx Mainboard

    Motherboard chip

    Intel Gemini Lake

    CPU

    Intel Celeron J4125 CPU,TDP:10W

    Optional: J4125, J5005

    memory

    1*DDR4 SO-DIMM, 2400MHz/8G, single slot supports 8G at most.

    Cunzhu

    1*M.2 slot (NGFF/NVME automatic switching); 1*SATA 3.0 interface+1*SATA power interface

    Display interface

    1*HDMI-1.4A interface, 1*VGA interface (optional with DB9), 1*LVDS interface, 2*EDP interface.

    network

    2*RJ45 interface

    Network card chip

    Realtek RTL8111H Gigabit NIC Chip

    WIFI

    1*Mini PCIe slot (supporting 4G/WIFI)

    audio frequency

    1*Line out 1*MIC In 1*F_Audio built-in pin; 1*JAMP built-in power amplifier pin

    Audio chip

    Realtek ALC897 HD Audio Chip

    serial port

    6 serial ports: 2*9Pin serial port pin, 1*40Pin serial port pin, 2*3Pin serial port voltage pin, 2*3Pin serial port communication pin.

    6 serial ports all support RS232 mode, of which COM2 supports RS485 and RS422 mode, and COM3 supports RS485 mode.

    parallel port

    Support LPT printing interface

    Usb interface

    IO interface: 2xUSB3.0; Built-in pins: 4 sets of USB2.0 pins (8 USB2.0 ports can be expanded);

    1*3Pin USB charged wake-up function

    LVDS function

    1*LVDS 30Pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V)

    Support copy/extended display

    LVDS backlight function

    1*6Pin INVERTER interface, 1*3Pin screen backlight voltage jump cap (5V/12V), 1*3Pin backlight forward and backward jump cap.

    EDP function

    2*EDP 30Pin pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V).

    Support copy/extended display

    EDP backlight function

    1*3Pin screen backlight voltage jump cap (5V/12V)

    Functional pin

    1*FPANEL panel pin; 1*4Pin CPU fan; 1*3Pin SYS fan

    GPIO

    Supports 2*5Pin GPIO pins.

    Power input

    1*DC socket; 1*4Pin power socket (DC12V power input)

    product size

    Thin Mini-ITX motherboard specification, 170 x 170 mm x 6L

    Working temperature

    -10~60

    Working humidity requirements

    10%~90% without condensation

    Storage temperature

    -25~70

    power consumption

    Standby power consumption: 8.4W Full load power consumption: 60W

    other

    1 JCMOS button; 1*3Pin JAT jump cap; 2*5Pin diagnostic card interface


    Product Selection

    model

    product configuration

    AX412

    2*LAN/2*USB3.0/8*USB2.0/1*HDMI-1.4A/1*LVDS/2*EDP/6*COM/4G Module
